| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | EXW |
| Payment Terms: | T/T |
| Place of Origin: | Guangdong, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 20,000 pcs /day |
| Packing: | EPE+CARTON |
| Delivery Date: | 5 -7 days |
| Brand Name: | LIGHT-BO | Charcter height: | 10mm (0.39 inch) |
|---|---|---|---|
| Outer dimensions: | 49*12.9*7.3 mm | Luminous intensity: | 100-140 mcd |
| Forward voltage: | 2.8-3.2V/led | Forward current: | 5-10mA/led |

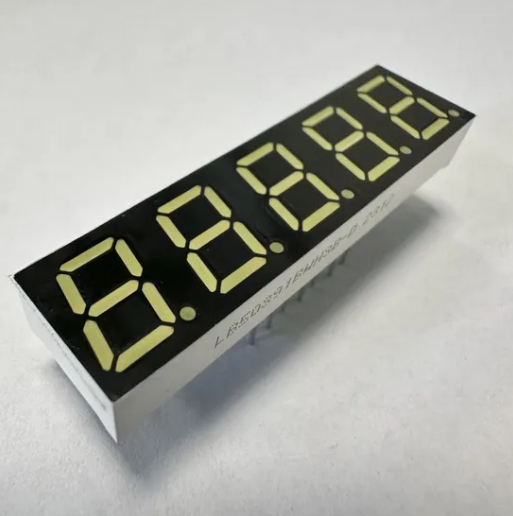

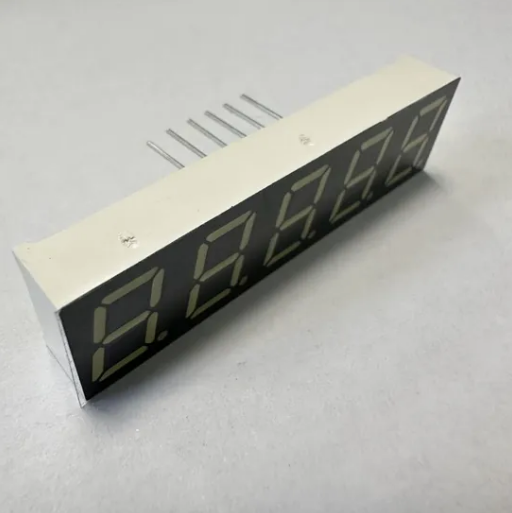

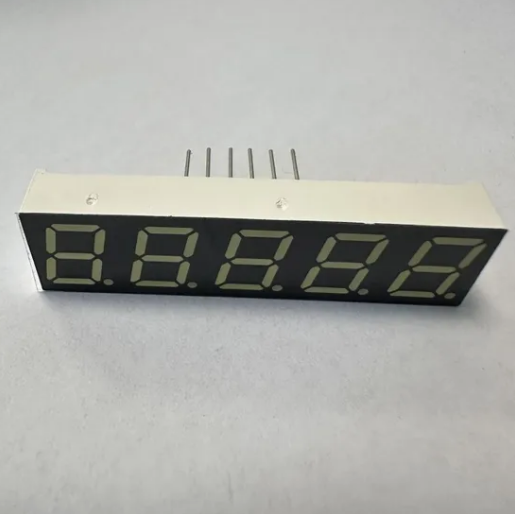

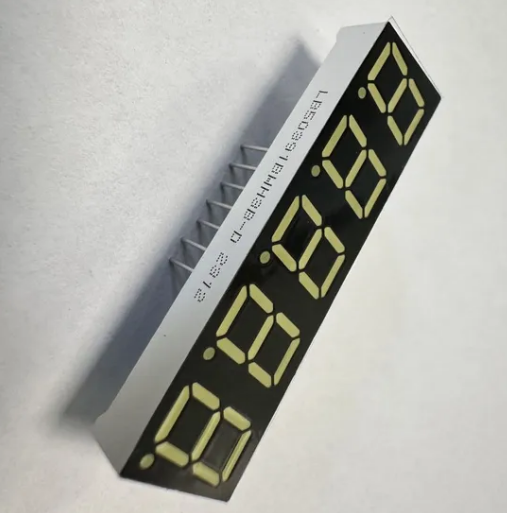

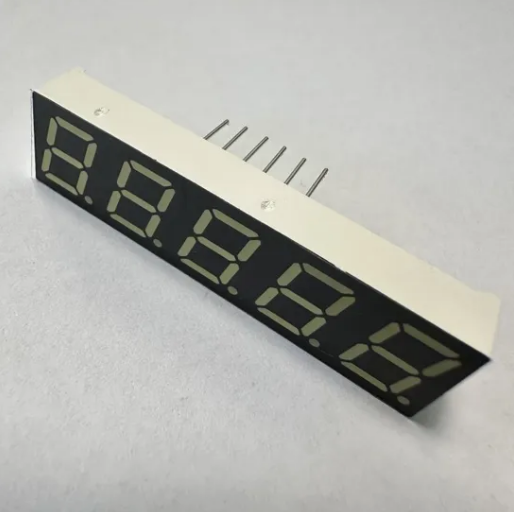

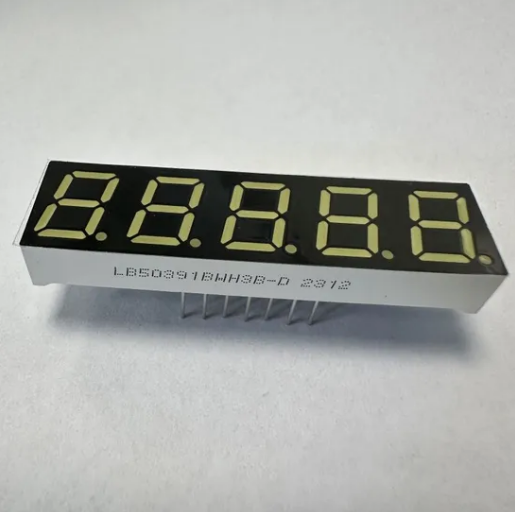

Ultra bright white 0.39inch 5 Digit LED Display 7 Segment common anode for process control
0.39inch 5-Digit White LED
Ultra Bright 7-Segment Process Display
Common Anode 5-Digit Control LED
Process Control 0.39inch White Display
5-Digit 7-Segment Ultra Bright LED
Min. Order: 1000 Piece/Pieces
Trade Term: EXW
Payment Terms: L/C, T/T, WU
Place of Origin: Guangdong, China (Mainland)
Means of Transport: fedex, Ocean, dhl, ups, Air, tnt, Land
Production Capacity: 20,000 pcs/day
Packing: epe+carton
Delivery Date: 7-10 days
Type: Standard
Brand Name: Light-Bo
Digit Type: 5-digit 7 Segment LED Display
Product Type: Custom Design
Dimensions: 49*12.9*7.3mm
Digit Height: 10.0mm (0.39")
LED Color: Ultra bright white
Polarity: Common Anode
5 Digit 7 Segment LED Display
Dimensions: 49*12.9*7.3mm
Digit Height: 10mm
Common Cathode
Yellow segments black face
LED Color: Ultra bright white
Luminous Intensity: 80-100mcd/led
Forward voltage: 2.8-3.2V/ led
Forward Current: 5-10mA
High luminous intensity
Low power requirement
Stable performance
Continous uniform segments
Easy assembly
IC Compatible
Long lifetime
Meet RoHS
APPLICATION:
Widely used for instrument and euipment panel, digital indicators, digital counters and so on .
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
