| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | EXW |
| Payment Terms: | T/T |
| Place of Origin: | Guangdong, China (Mainland) |
| Means of Transport: | Ocean, Land |
| Production Capacity: | 20,000 pcs/day |
| Packing: | epe+carton |
| Delivery Date: | 7 -5 days |
| Brand Name: | LIGHT-BO | Product Type: | Custom Design |
|---|---|---|---|
| Dimensions: | 49*12.9*7.3mm | Digit Height: | 10.0mm (0.39") |
| Polarity: | Common Cathode |

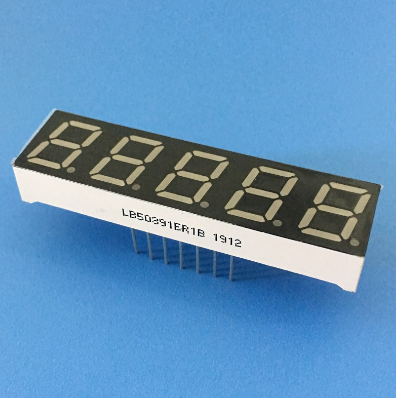

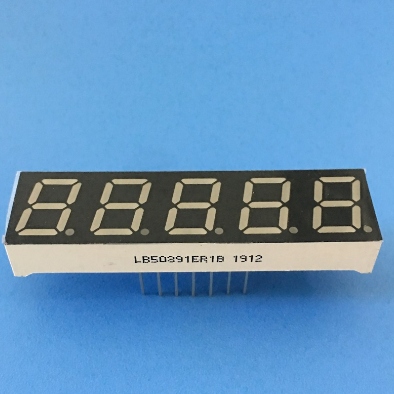

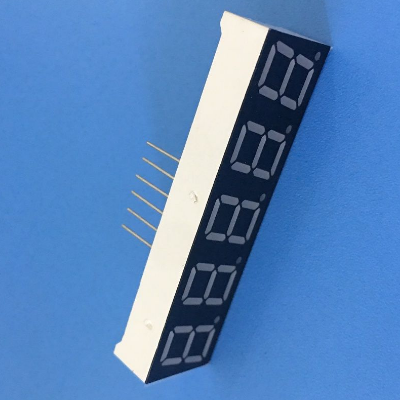

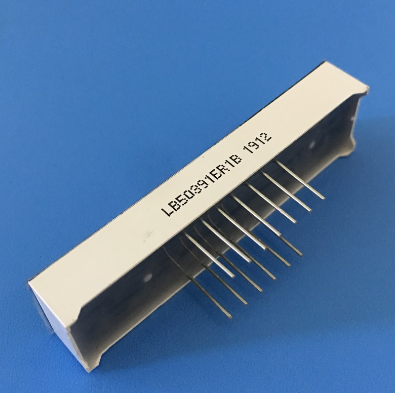

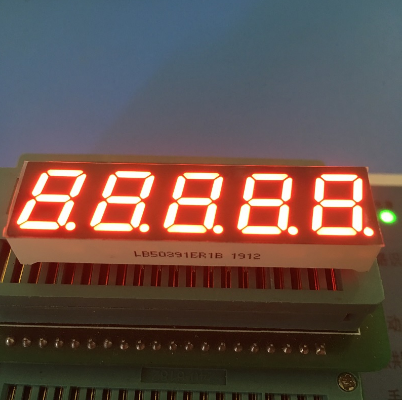

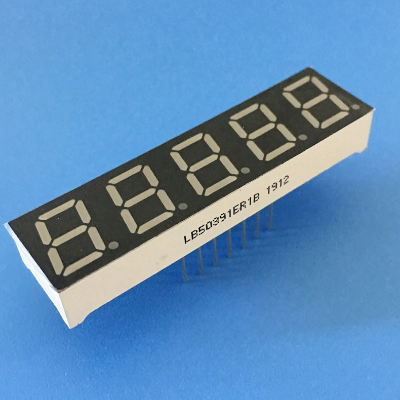

Super Red 0.39" 5 Digit 7 Segment LED Display common cathode for temperature indicator
5 Digit 0.39" Red LED Display
Super Red 7 Segment Cathode
0.39" 5 Digit Temp Indicator
Red 7 Segment Temperature LED
5 Digit Cathode Red 0.39"
Type: Standard
Brand Name: Light-Bo
Digit Type: 5-digit 7 Segment LED Display
Product Type: Custom Design
Dimensions: 49*12.9*7.3mm
Digit Height: 10.0mm (0.39")
LED Color: Super Bright Red
Polarity: Common Cathode
5 Digit 7 Segment LED Display
Dimensions: 49*12.9*7.3mm
Digit Height: 10mm
Common Cathode
White segments black face
LED Color: Super bright Red
Wavelength: 620-630nm
Luminous Intensity: 50-60mcd/led
Forward voltage: 1.8-2.5V/ led
Forward Current: 12-15mA
High luminous intensity
Low power requirement
Stable performance
Continous uniform segments
Easy assembly
IC Compatible
Long lifetime
Meet RoHS
APPLICATION:Widely used for instrument and euipment panel, digital indicators, digital counters and so on .
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Category: 5 Digit LED Display
