Ultra Bright Red LED Display 7 Segment 3 Digit 10mm Common Cathode For Frequency Convertor Control Panel

Ultra bright Red LED Display 7 Segment 3 Digit 10mm common cathode for frequency convertor control panel

• Specifications:

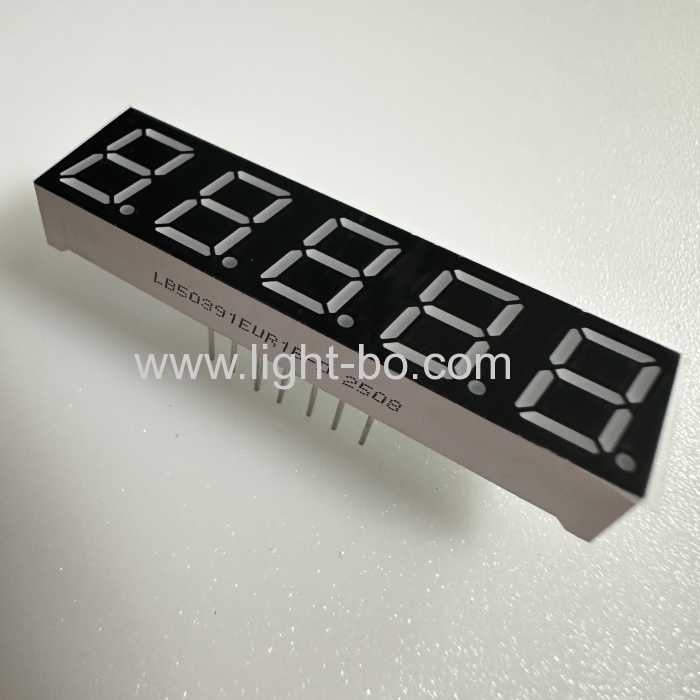

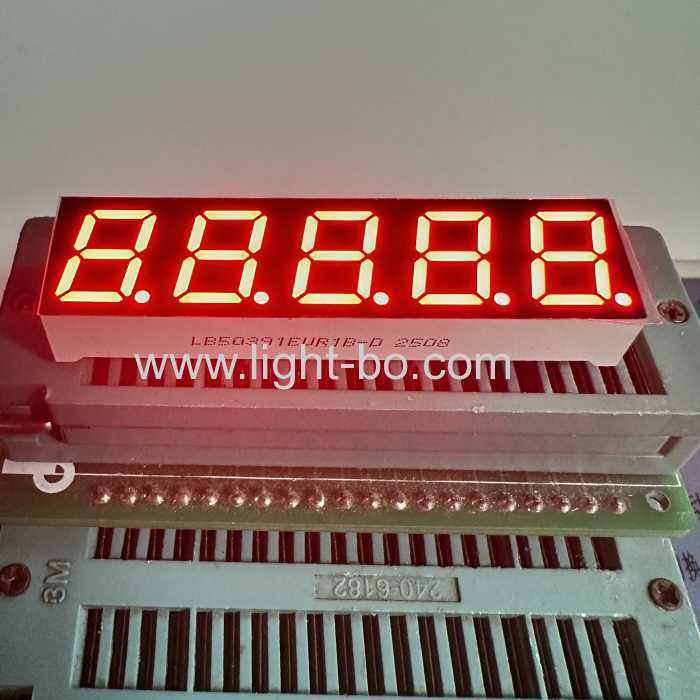

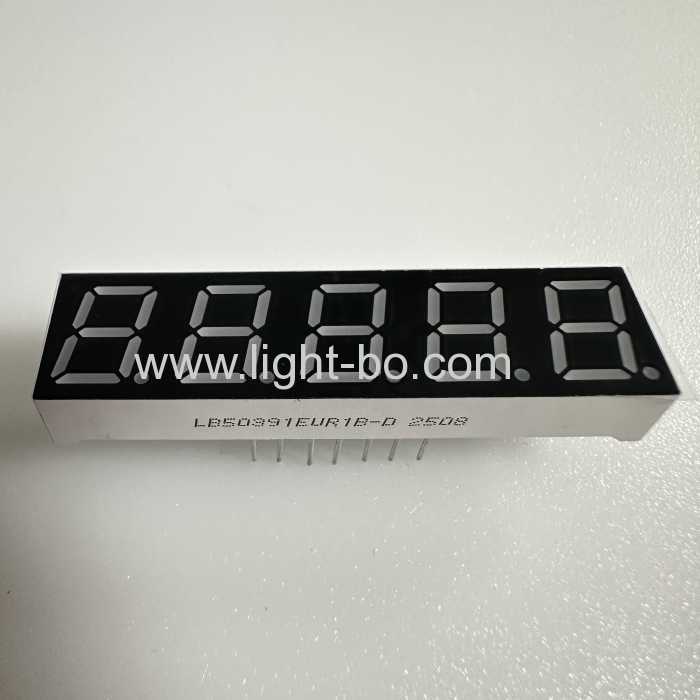

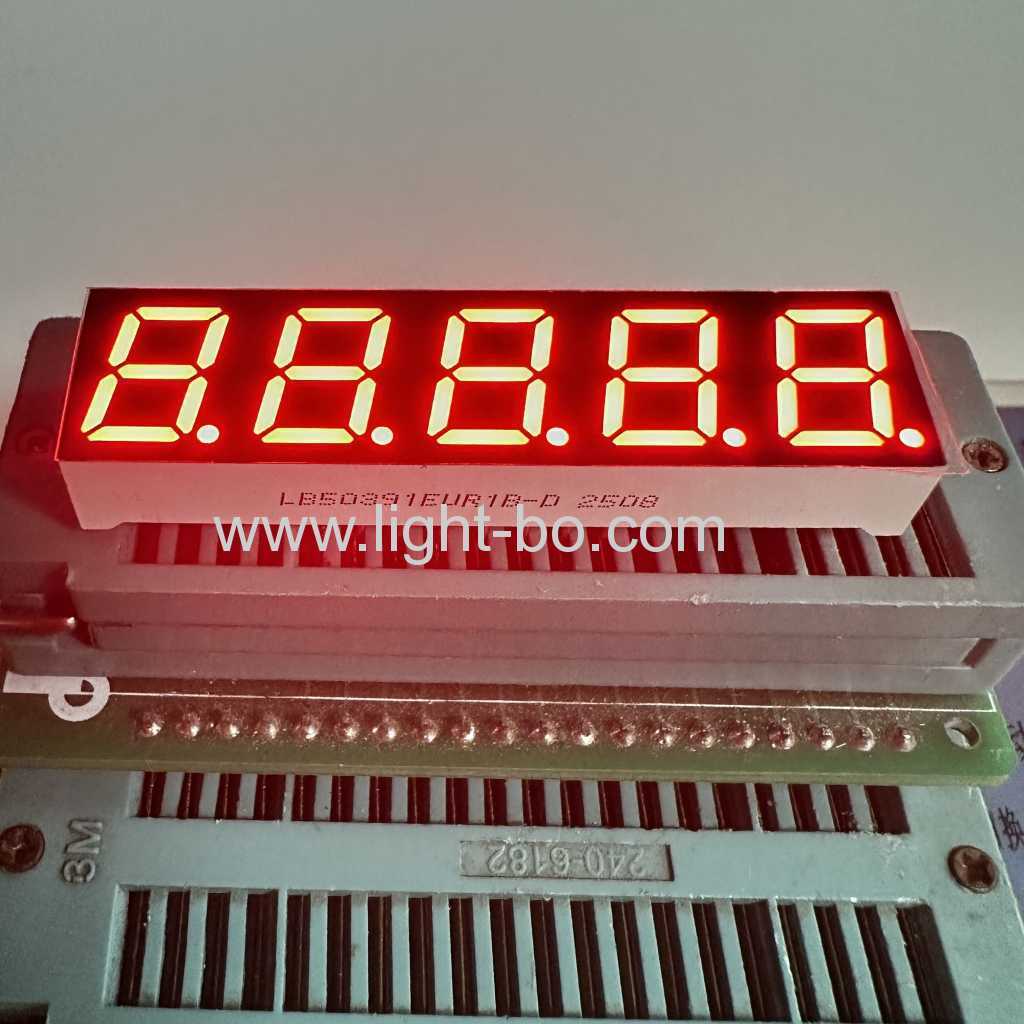

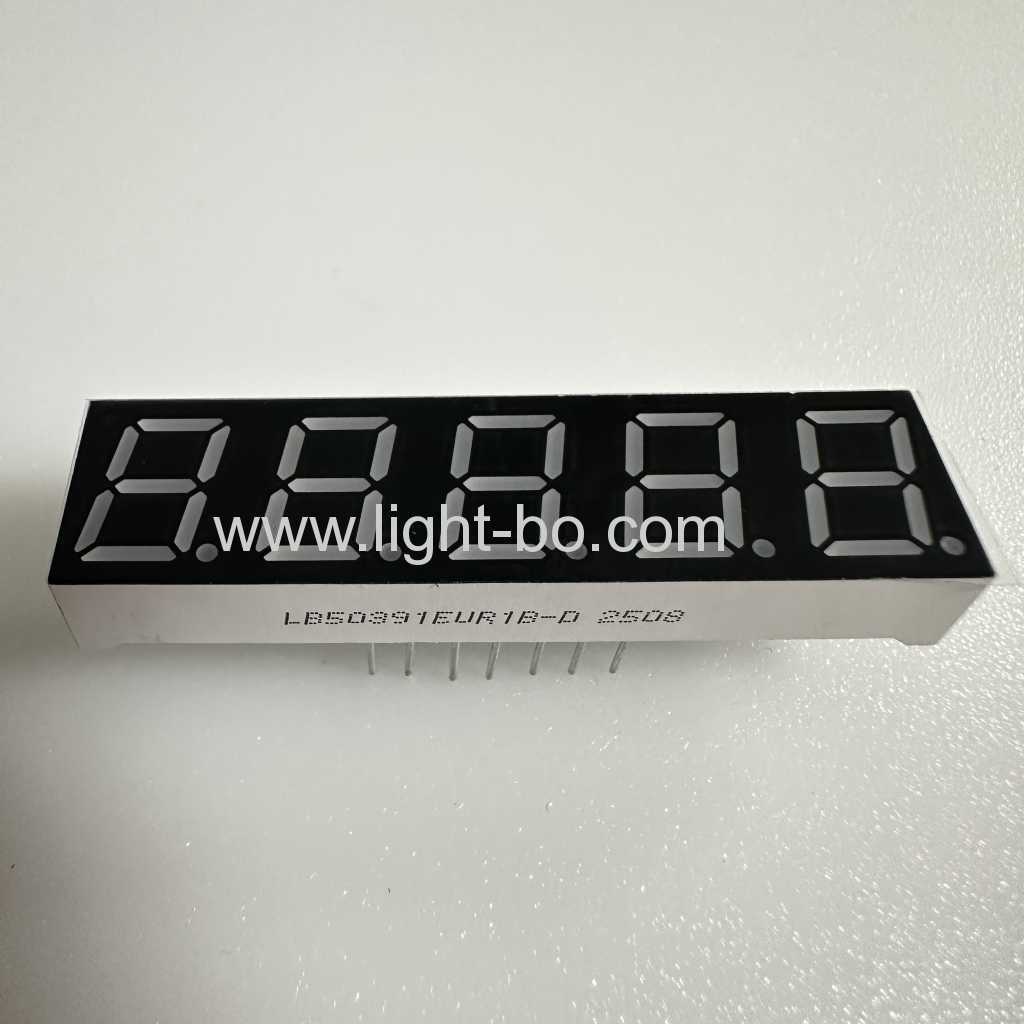

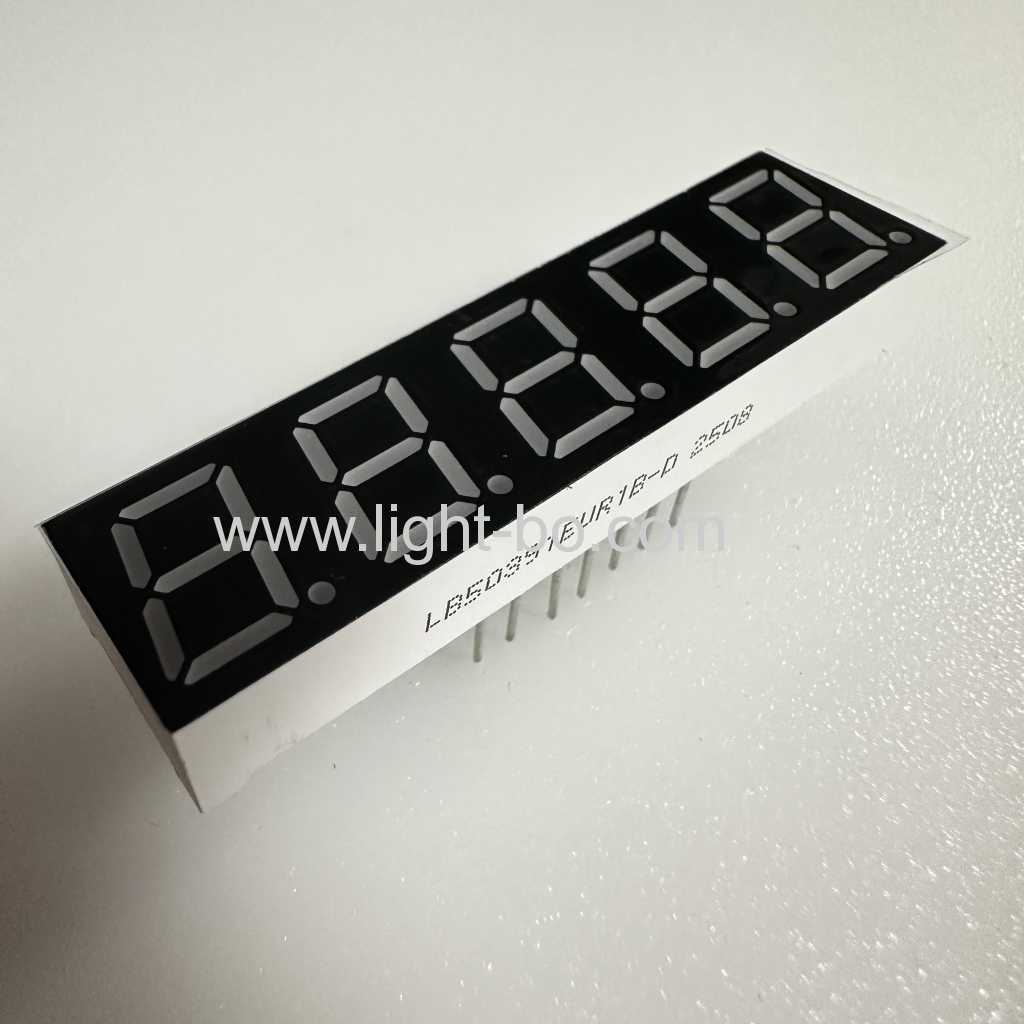

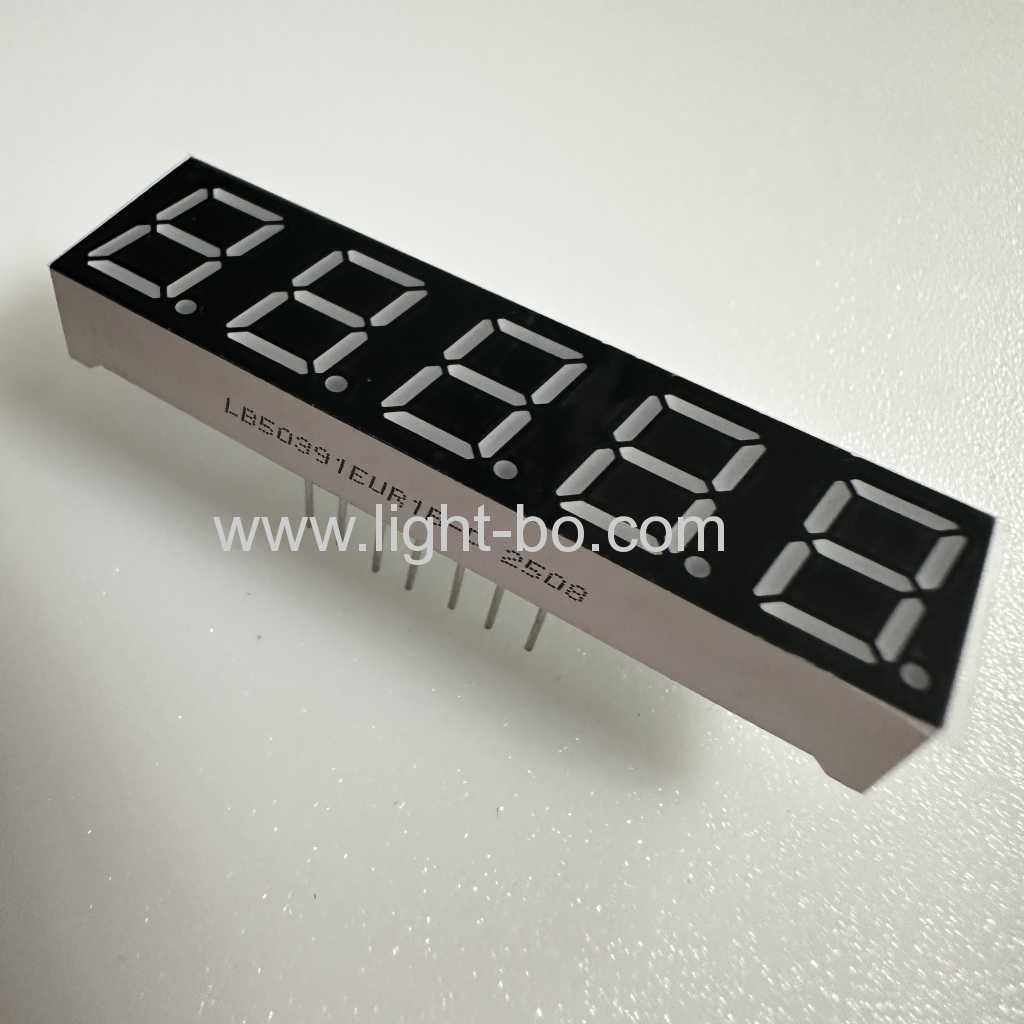

• Display: 5 digit, 0.39 inch 7 segment led display

• Charcter height: 10mm (0.39 inch)

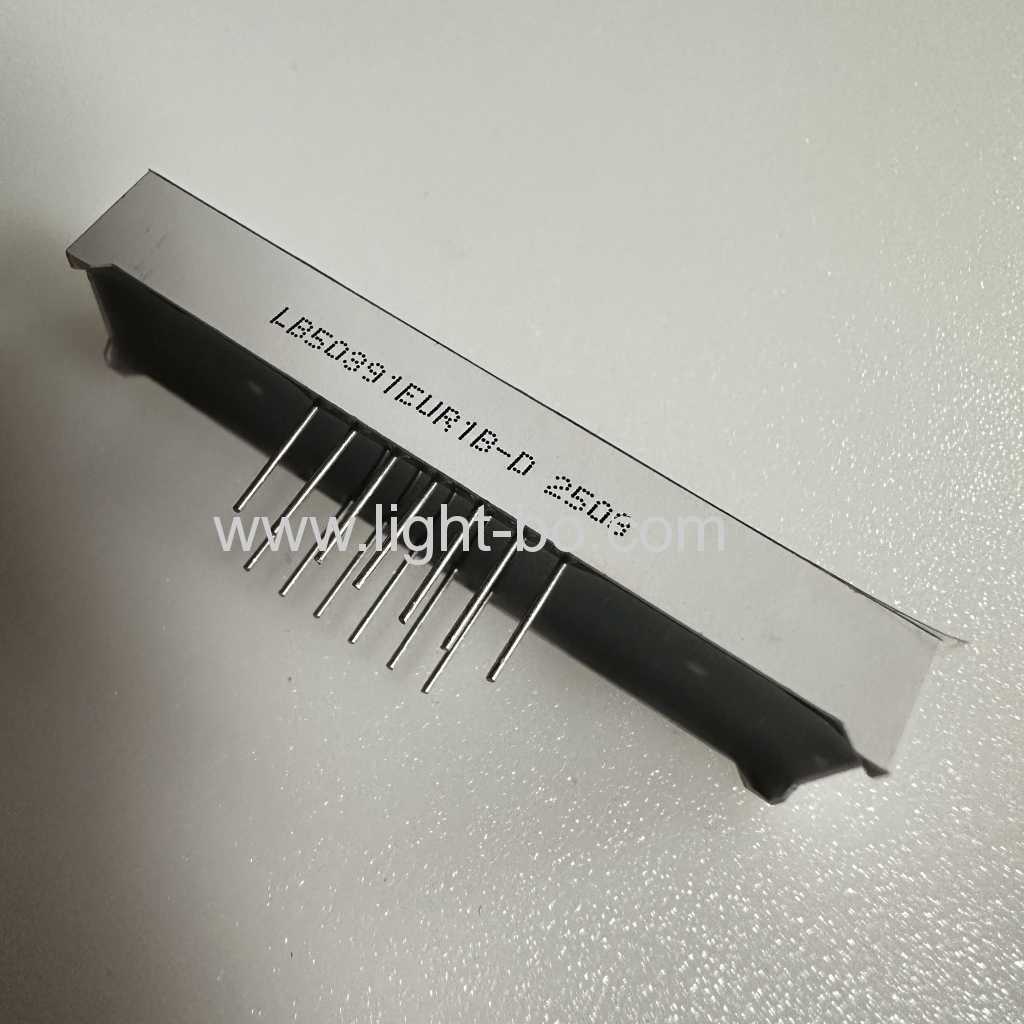

• Outer dimensions: 49*12.9*7.3 mm

• white segments black surface

• With common cathode

• Emitting color: Ultra bright red

• Luminous intensity: 80-100 mcd

• Forward voltage: 1.8-2.2V/led

• Forward current:5-10mA/led

• Colors: red, blue, yellow green, pure green, amber, orange and pure white

•

•

•


• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm




  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm




  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm




  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm




  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm




  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•


• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

•


•


• High luminous intensity and reliability

• Low power consumption

• Extremely low current

• Stable performance

• Long lifespan

• Easy-to-assemble

• IC compatible

• Meet RoHS Compliant

•


• Applications:

• Widely used for instrument panels,home appliances, digital indicators, led clock displays and set-top boxes,etc.
