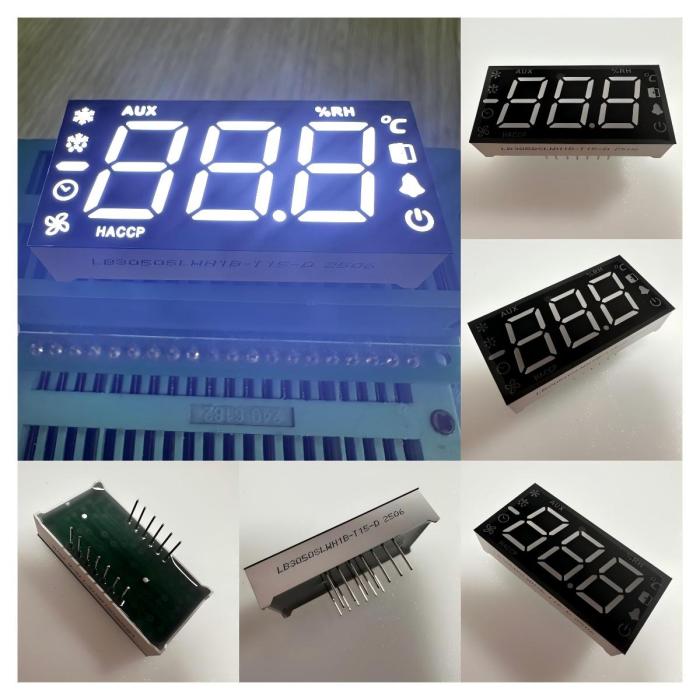

7 Segment LED Display 3 Digit 12.7mm Common cathode White for Refrigerator control panel
7 Segment LED Display 3 Digit with minus sign
Number of Digits: 3 digits (with minus sign)
Digit Height: 12.7mm (0.50 inches)
Outer Dimensions: 38.2 x 19 x 8mm
Polarity: Common cathode
Emitting Colour: Ultra bright white (also available in red, blue, green, amber, yellow, orange and multi-colour)
X/Y Value: 0.29-0.31
Luminous Intensity: 80-100mcd
Forward Voltage: 2.8-3.2V per LED
Forward Current: 5-10mA per LED
High luminous intensity and reliability
Low power consumption
low current
Stable performance
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS
PRODUCTS PARAMETERS
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Optica/Electrical Characteristics
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
PRODUCTS APPLICATIONS :
Widely used for home appliances,instrument panels, ICP Monitors,digital indicators, set up boxes,temperatue humidity indicators , and so on .
