| Type: | Standard | Brand Name: | LightBo |
|---|---|---|---|
| Package dimension: | 41 x 17.5 x 7.2 (mm) | Character height: | 13.4 mm (0.52inch) |
| Emitting colour: | Ultra Bright Red | Polarity: | Common Anode |
| Application: | Refrigerator Control Panel |

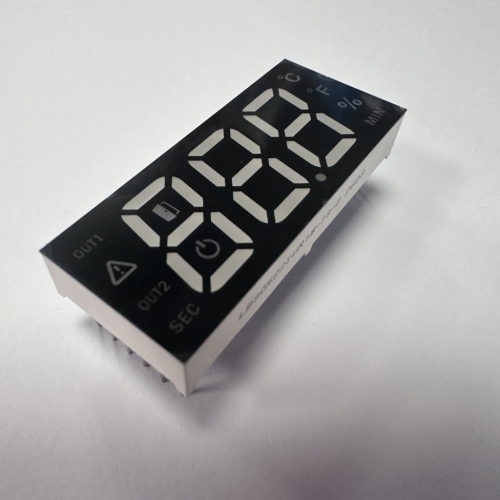

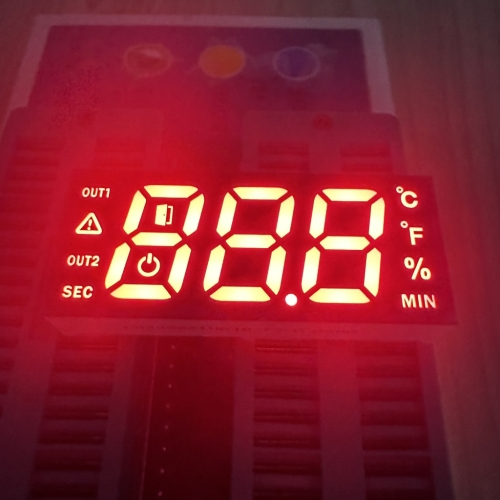

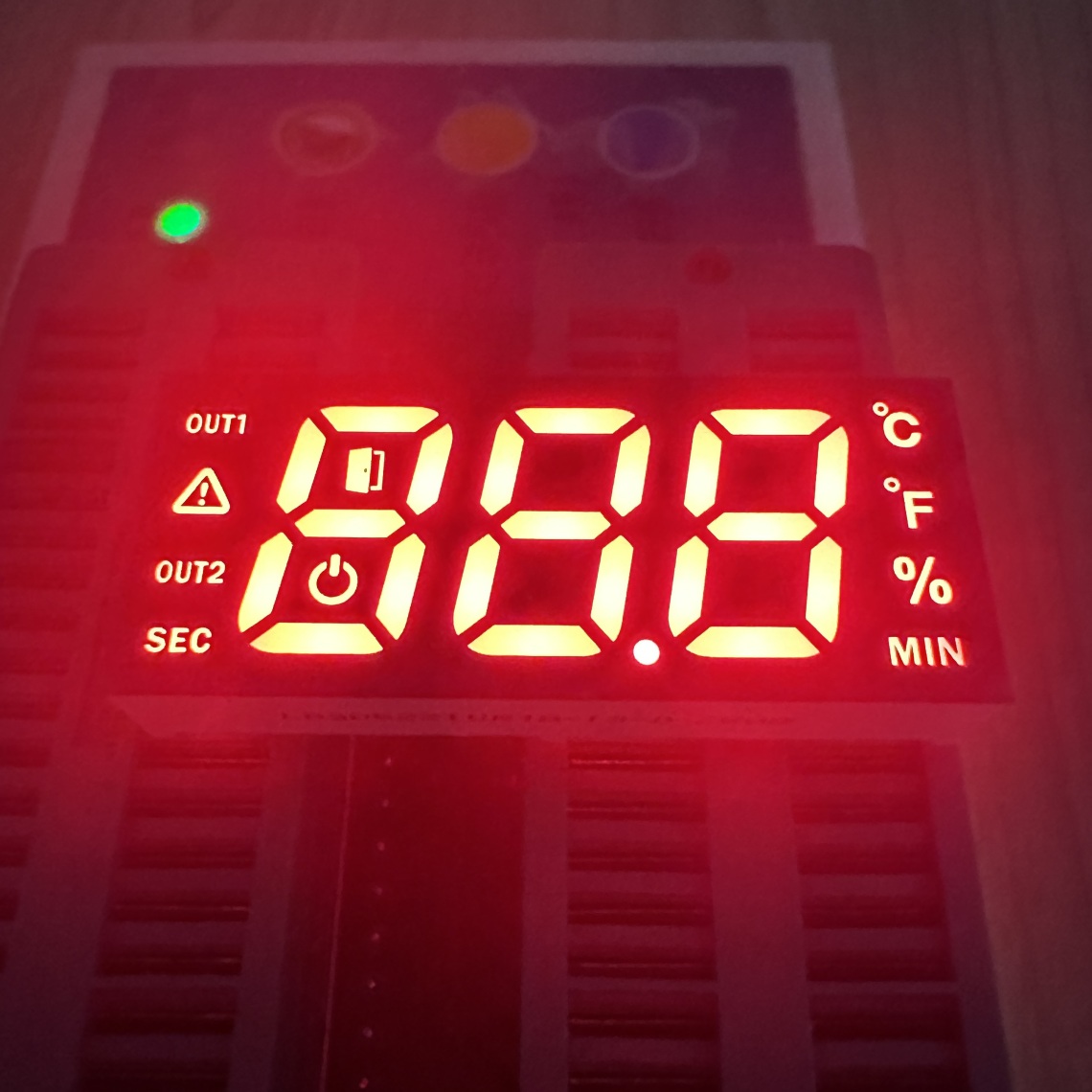

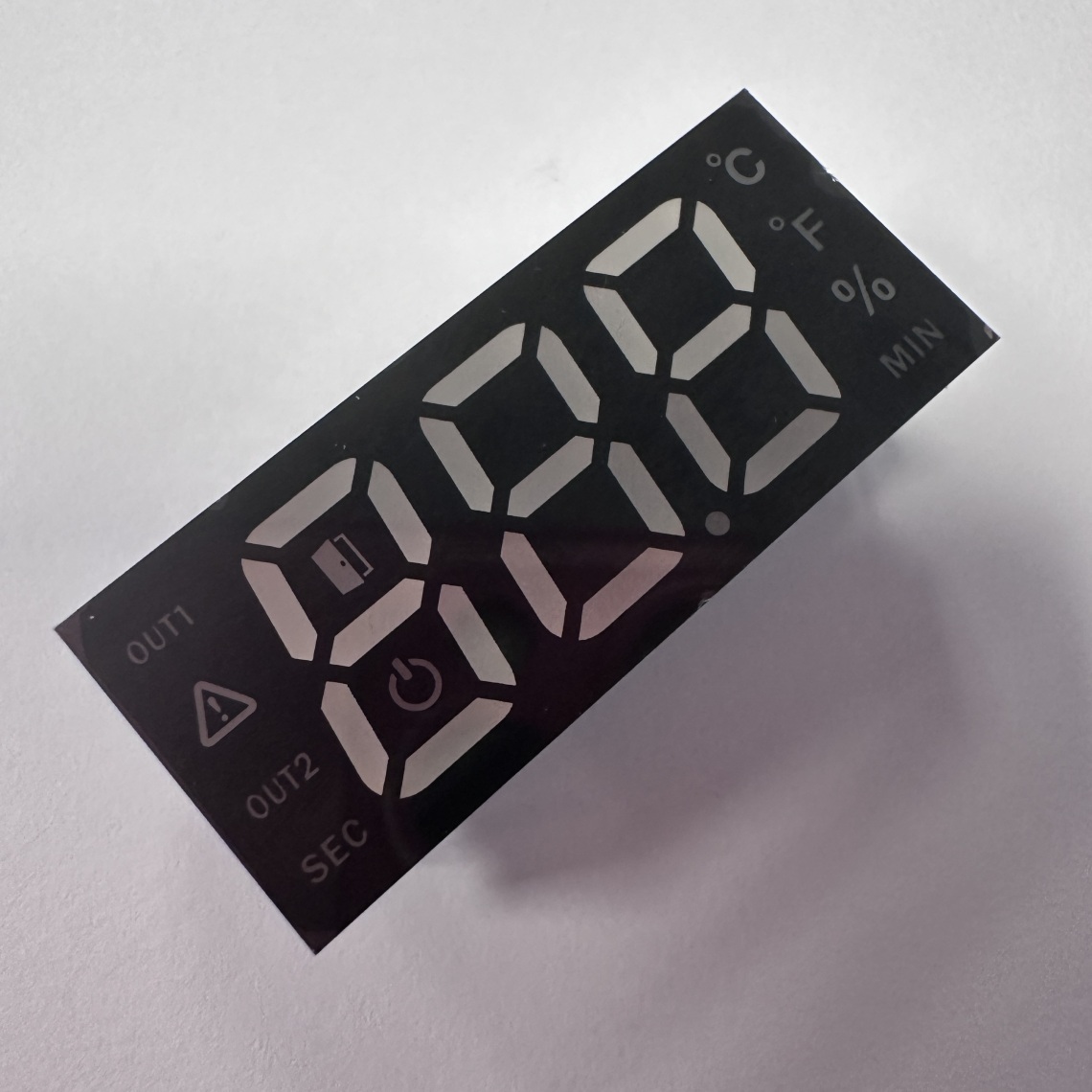

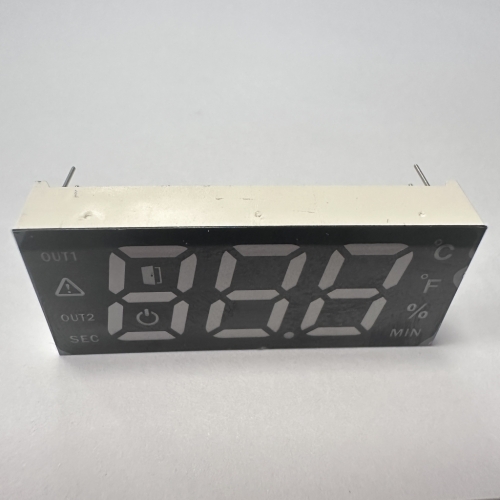

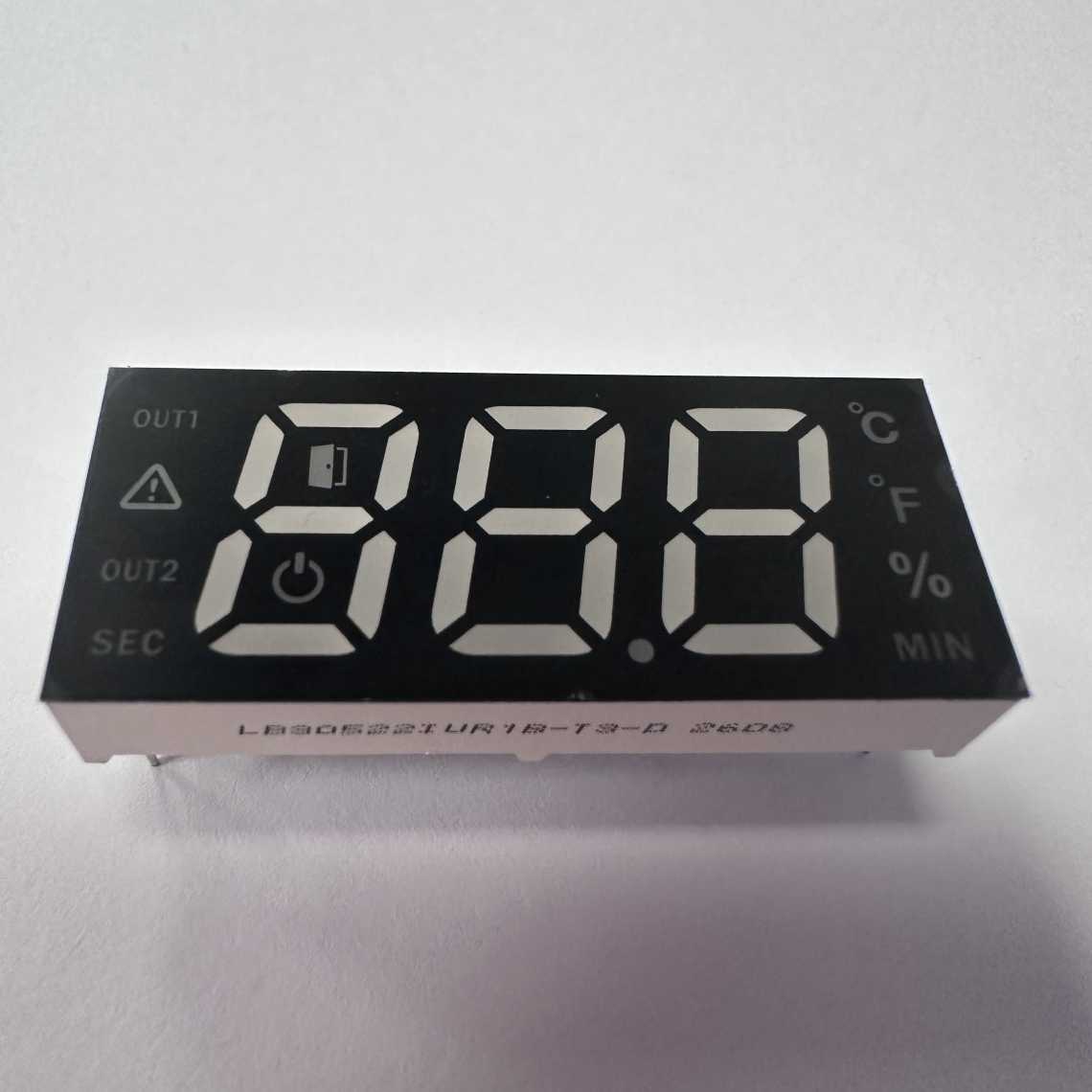

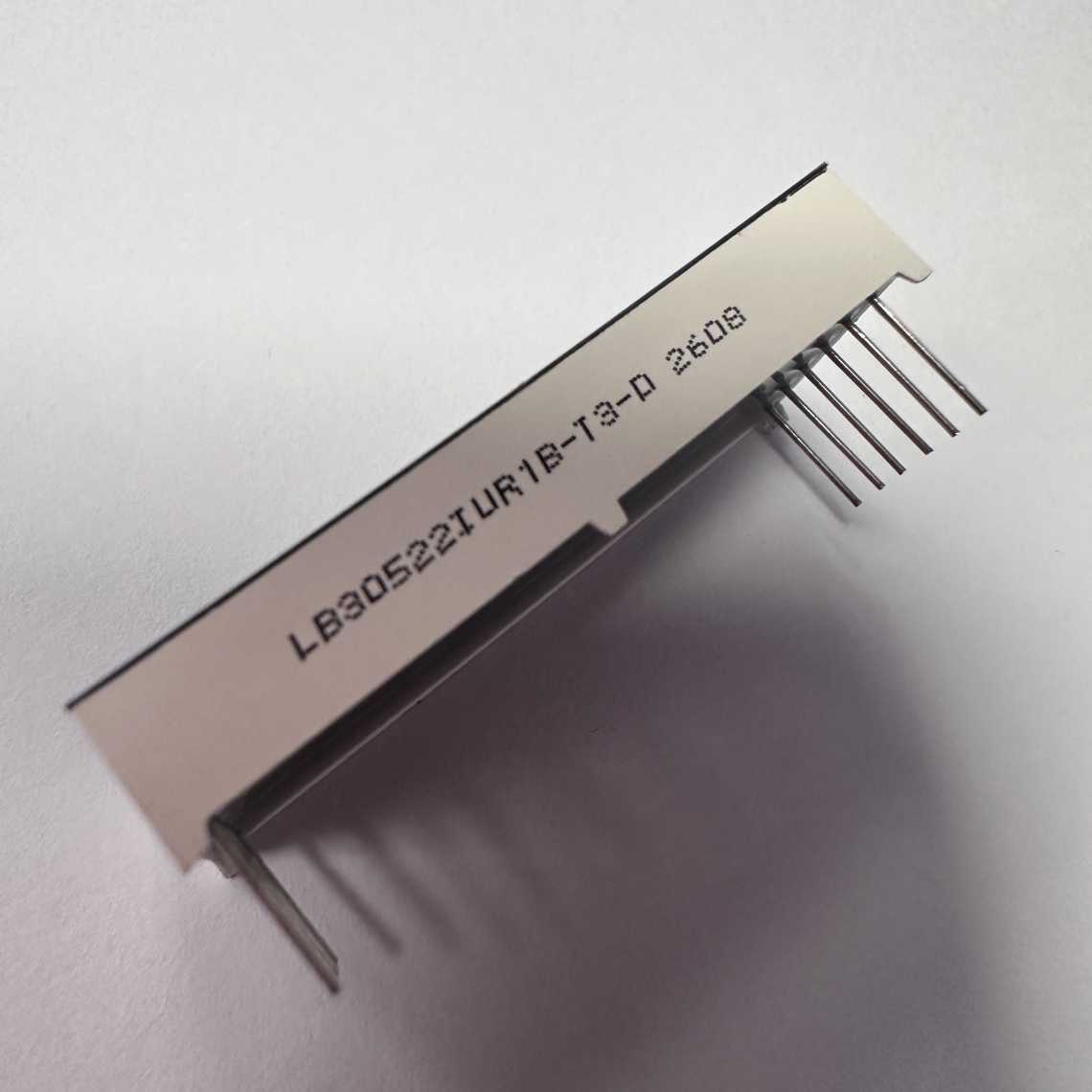

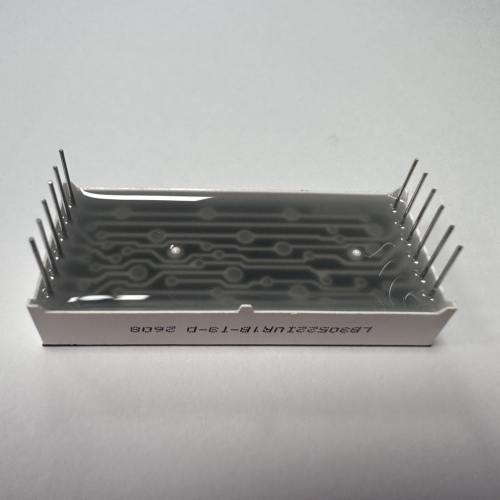

Ultra bright Red 7 Segment LED Display 3 Digit 13.4mm for Temperature Humidity
7 segment led display,led display, 7 segment display,3 digit display,customized display
Digit height: 13.4mm (0.52 inches)
Outer dimensions: 41 x 17.5 x 7.2 (mm)
Polarity: common anode
With white segments and black surface with film
LED color : Ultra bright Red
Emitting Colors:available in red, blue, green, white, amber, yellow and orange
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
High luminous intensity and reliability
Low power consumption
Stable performance
Continuous uniform segments
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS
APPLICATIONS:
Home electronic appliances,digital indicators, air conditioner controllers,refrigerator control,fridge control panel.
Products Applications
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display,3 Digit display, 3 Digit 7 segment ,triple digit display
widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
