Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control video
Min. Order: 1000 Piece/Pieces
Trade Term: EXW
Payment Terms: T/T, WU
Place of Origin: Guangdong, China (Mainland)
Means of Transport: Ocean, Air, Land
Production Capacity: 20,000 pcs /day
Packing: Plastic Tray
Delivery Date: 5 - 7 days
Type: Standard
Brand Name: Light-Bo
Character height: 12.7mm(0.5inch)
Outer dimensions: 92*18*12 (mm)
Emitting colors: White/ Red
Application: kitchen hood
Customized led display for kitchen hood
Dimensions: 92*18*12mm
Digit height: 12.7mm
LED Color: White /red
Common cathode

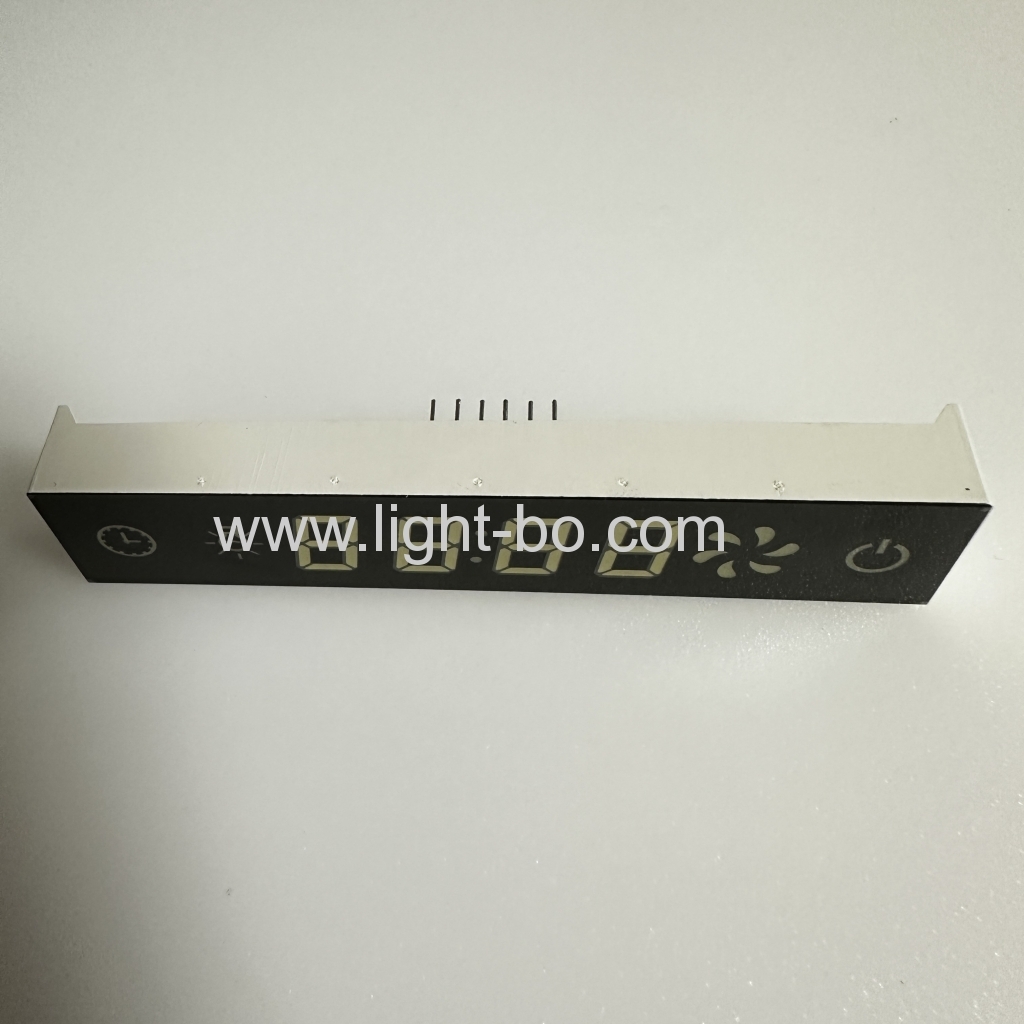

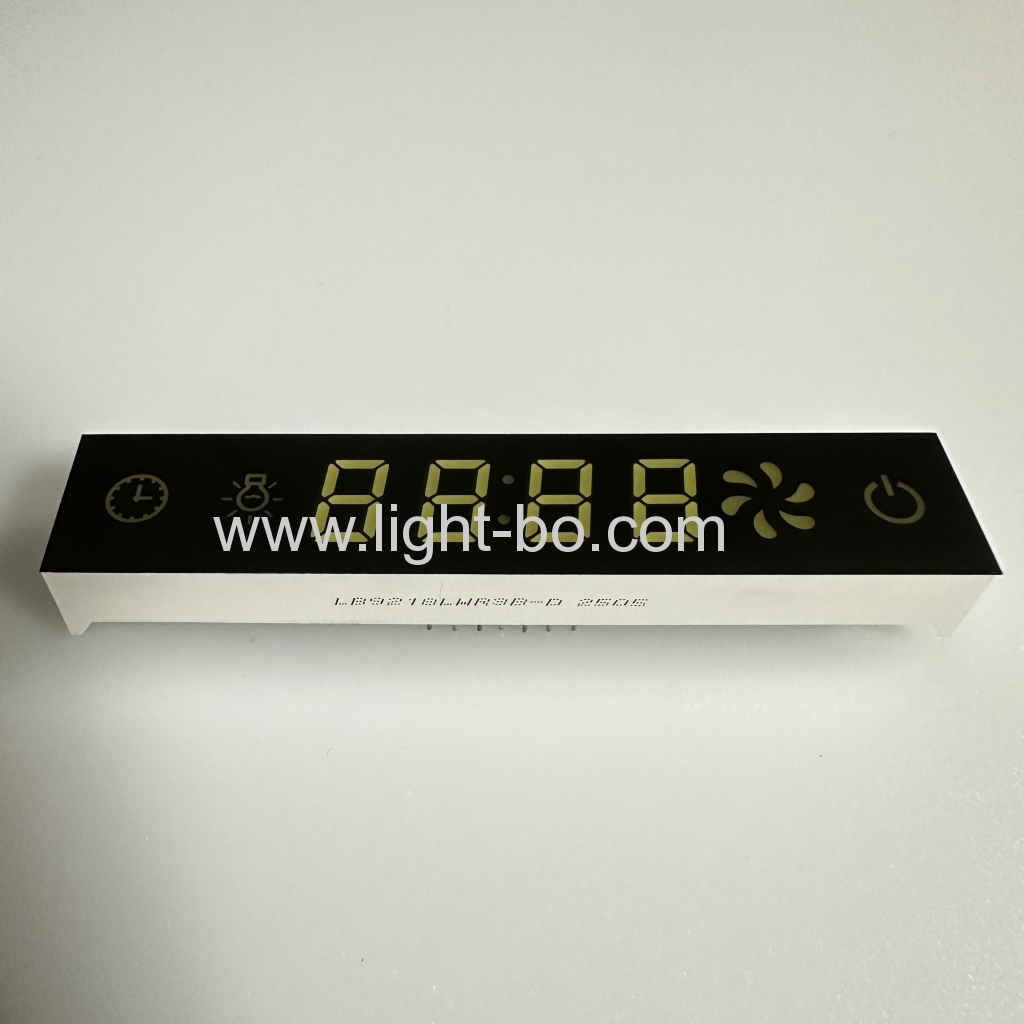

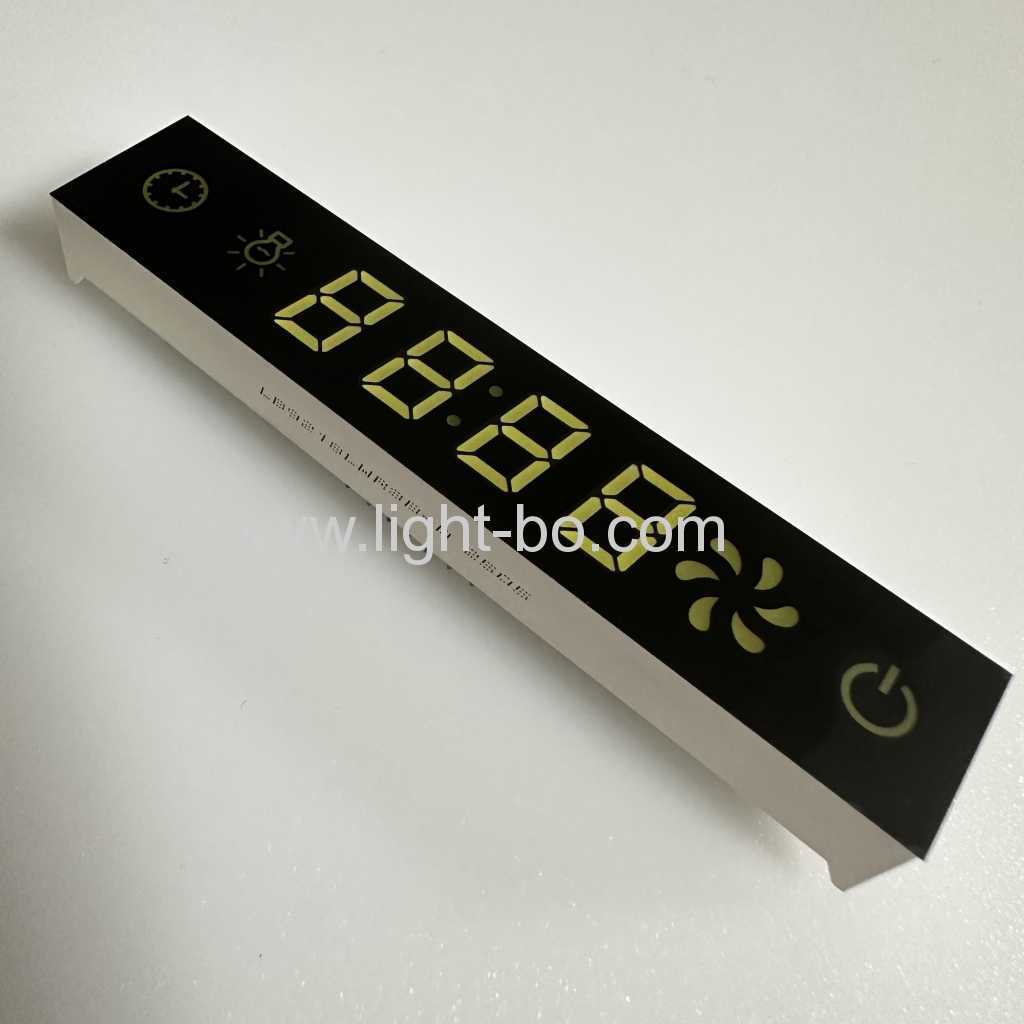

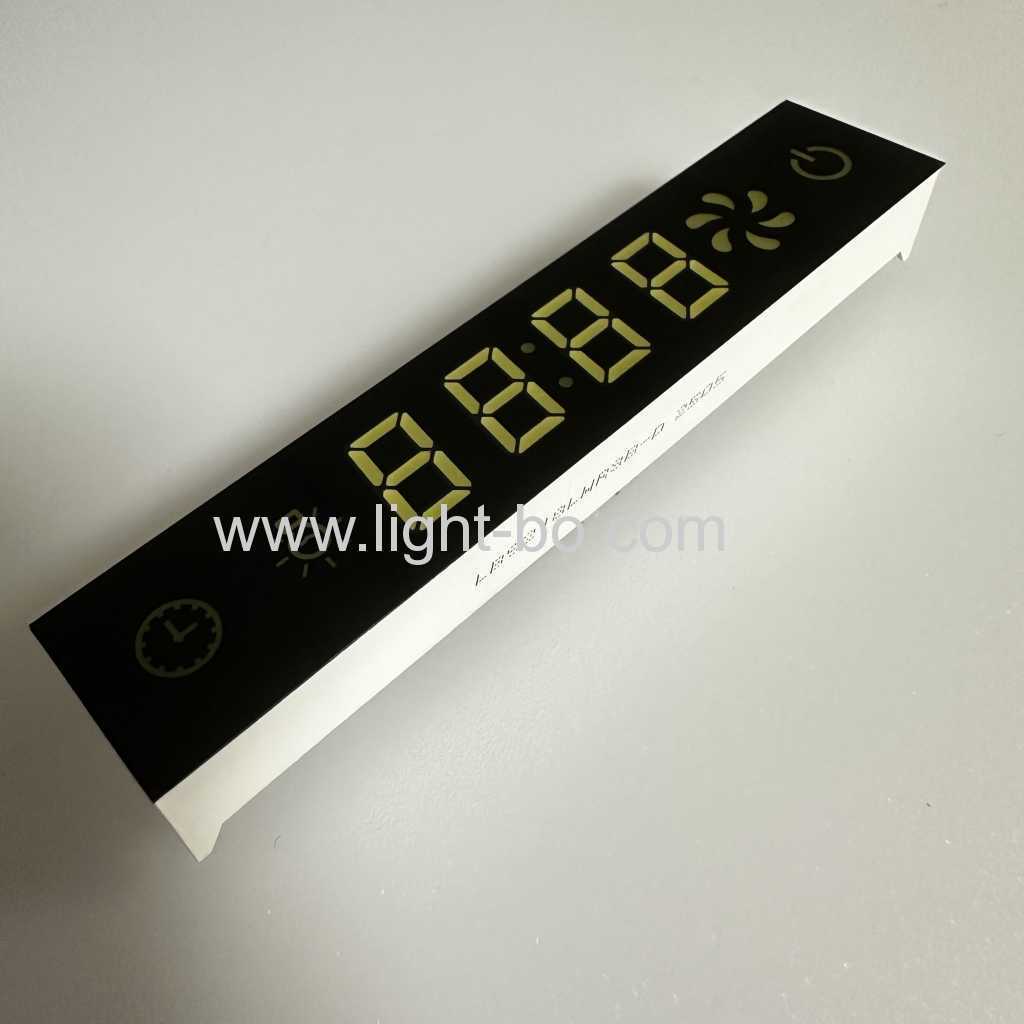

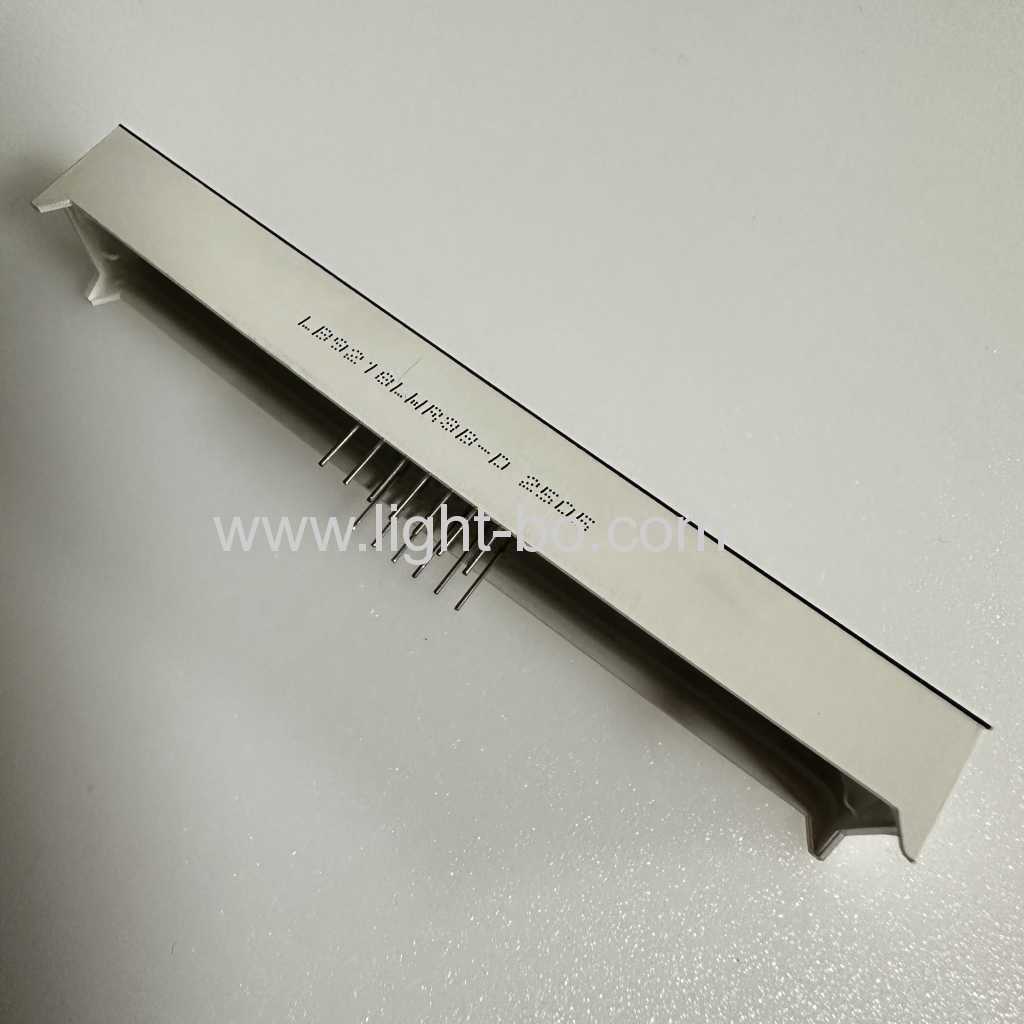

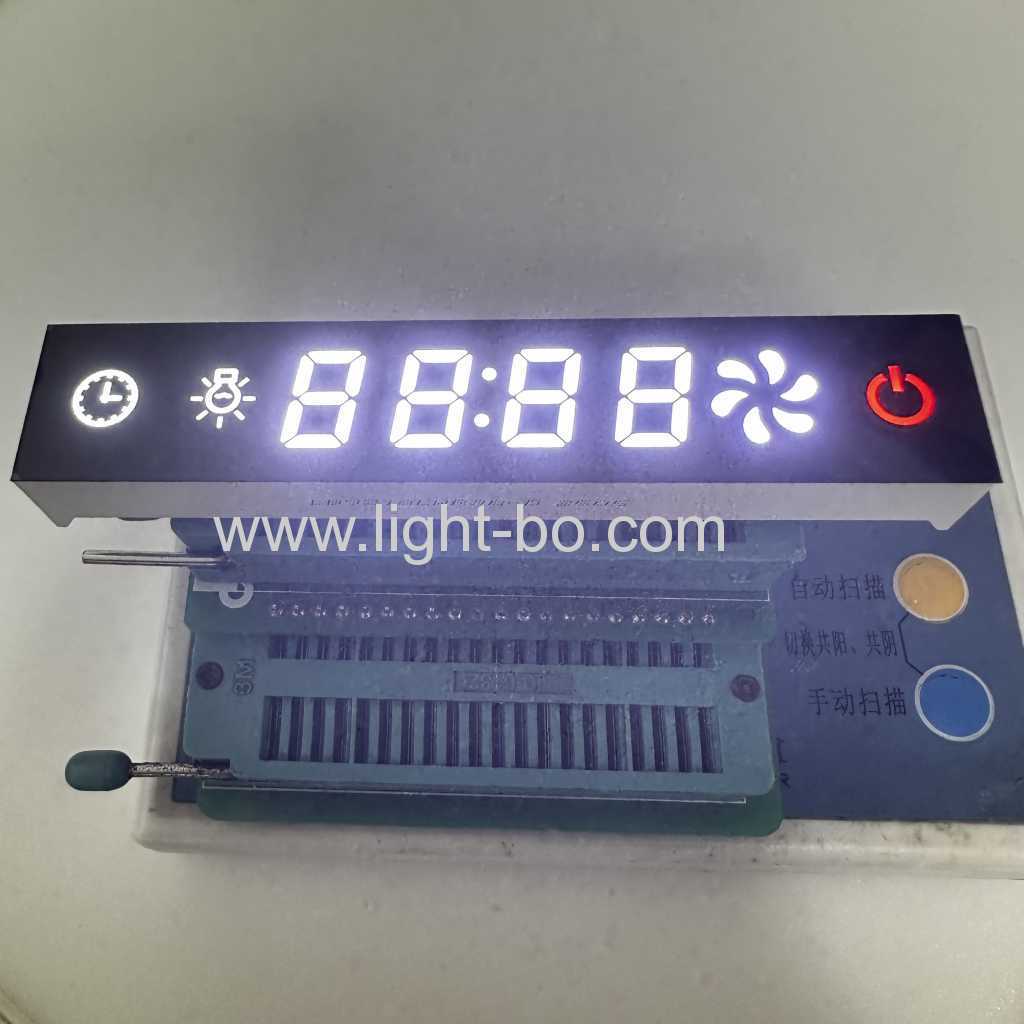

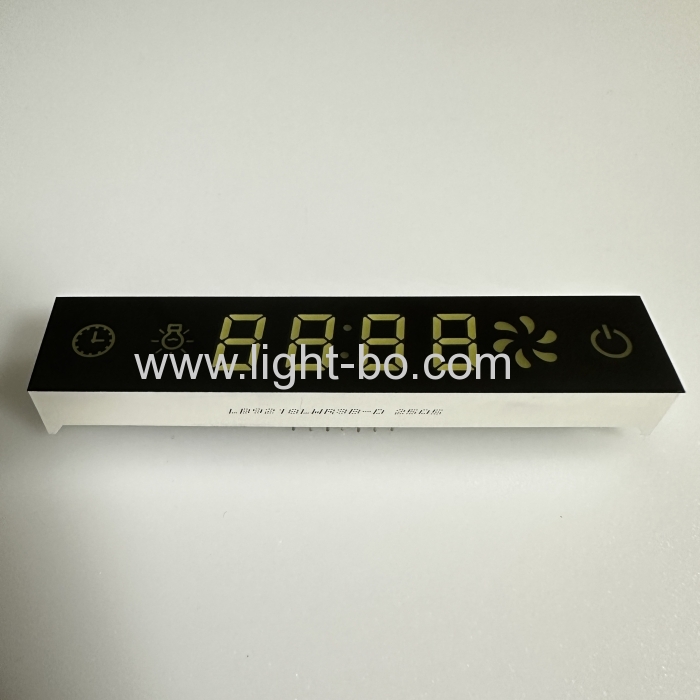

Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control
  • Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control

Ultra White/Red 7 Segment LED Display Module with black film for Kitchen Hood Control 92*18mm










4 Digit 7 Segment LED Clock Dsiplay for hood


Digit height: 12.7mm ( 0.5inch)


Outer dimensions: 92*18*12mm


Made with yellow diffused epoxy black surface ,covered with BLACK film


Common cathode


Emitting colour:  white / red


Luminous intensity: 100-120mcd / 80-90MCD


Forward voltage: 2.8-3.3v/1.8-2.3V


Forward current:5-10mA/led





Emitting colors: available in red, blue, green, white, amber, yellow and orange, multi-color



  • Absolute Maximum Ratings(Ta=25ºC)

    ParameterSymbolRatingsUnit
    Forward Current(per dice)Ipm20mA
    Reverse Voltage(per dice)Vr5V
    Power Dissipation(per dice)Pm80mW
    Operating Temperature RangeTopr-40~+85ºC
    Storage Temperature RangeTstg-40~+85ºC
    Solder Temperature(≤3 seconds)Th260

    ºC



  • Optical/ Electrical Characteristics

  • Code:Yellow Green- J

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.4V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA30
    40mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA569
    574nm



    Code:Amber/Yellow -Y

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.5V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA60
    80mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA585
    595nm




    Code:Orange -F

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.4V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA60
    80mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA600
    605nm



    Code:Super Bright Red -R

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.2V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA50
    60mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA630
    635nm



    Code:Ultra Bright Red -UR

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA1.8
    2.2V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA80
    100mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA625
    635nm



    Code:Pure Green -G

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA2.6
    3.2V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA120
    180mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA515
    525nm


    Code:Ultra Bright Blue -BH

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA2.8
    3.2V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA120
    140mcd
    Spectrum With Of Half Value△λIf=10mA
    20
    nm
    WavelengthIf=10mA460
    465nm

  • Code:Ultra Bright White -WH

    ParameterSymbolConditionMinTypMaxUnit
    Forward VoltageVfIf=10mA2.8
    3.2V
    Reverse VoltageVrIr=10uA5

    V
    Luminous IntenstyIvIf=10mA120
    140mcd
    LED color TemperatureKIf=10mA5500206800K

    Chromaticity Coordinates

    X/YIf=10mA0.29,0.32
    0.30,0.33nm

  • High luminous intensity and reliability

  • Low power consumption

  • Stable performance

  • Continuous   uniform segments

  • Long lifetime

  • Easy assembly

  • IC compatible

  • Certificate: RoHS

  • APPLICATIONS:

  • Home electronic appliances,digital indicators, air conditioner controllers,refrigerator control,fridge  control panel.


Product features:

High luminous intensity output
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Continuous uniform segments
Easy mounting on PC boards and sockets
Long lifetime
RoHS Directive-compliant
OEM and ODM orders are accepted

Applications:

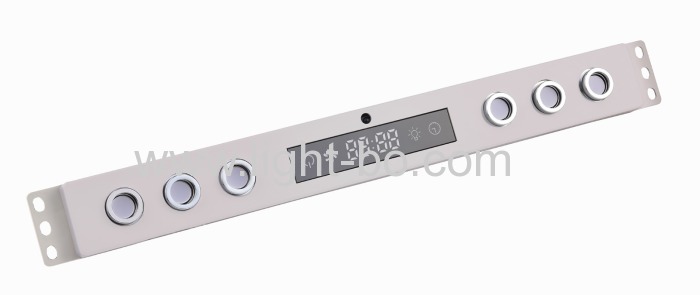

Widely used in home electronic appliances,range hood control ,kitchen hood controller,  air conditioner control, refrigerator indicators, refrigerator control, cooling control, heating control and so on .
