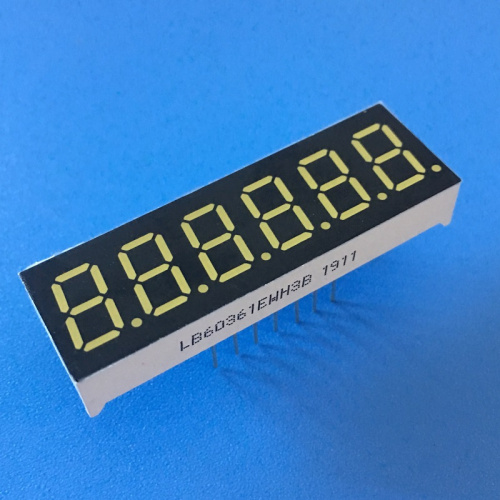

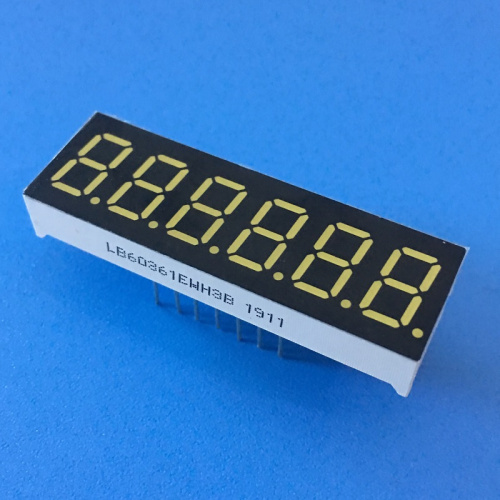

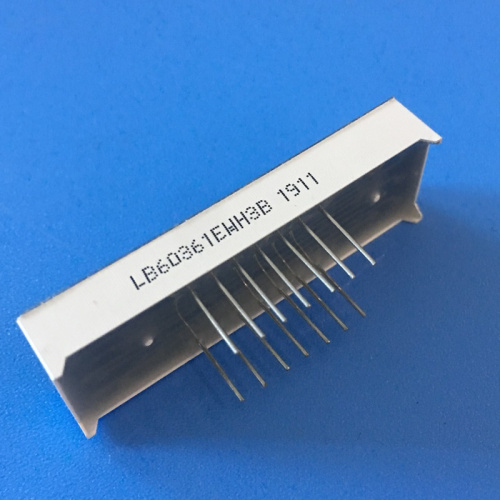

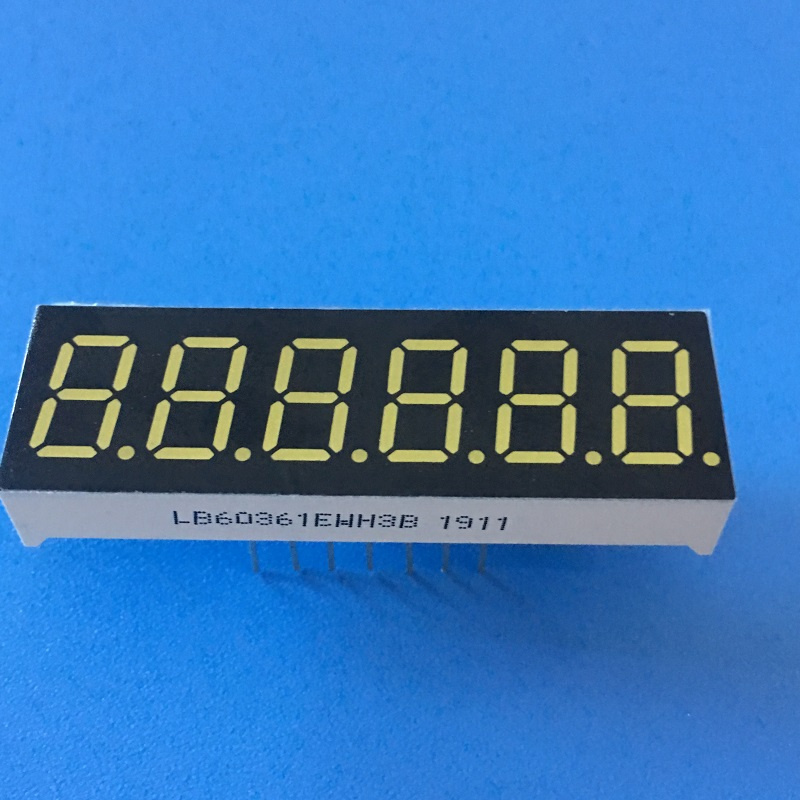

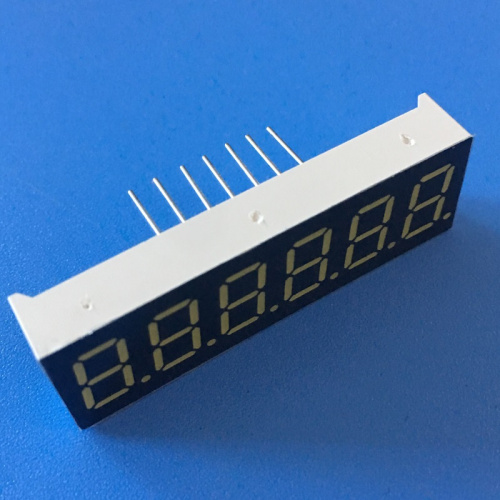

Ultra Bright White 9.2mm 6 Digit 7 Segment LED Display Common Cathode For Timer

Ultra Bright White 9.2mm 6 Digit 7 Segment LED Display Common Cathode for Timer

• Digit height: 9.2mm (0.36-inch)
  Outer dimensions:43.5 x 14.0 x 7 mm

• Common cathode

• Made with white segments, black surface

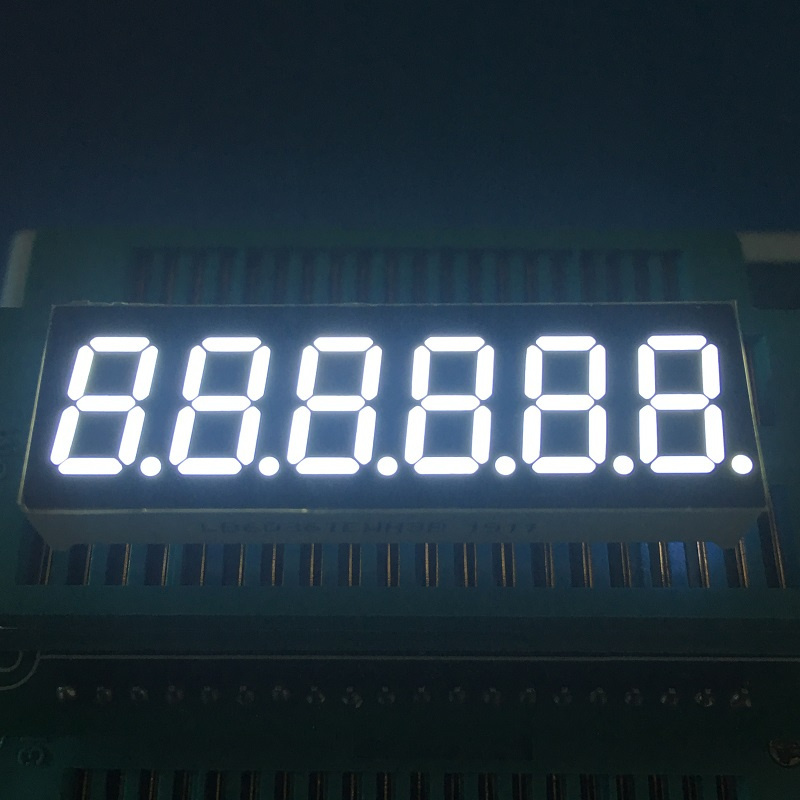

• Display Colour: ultra bright white
  X/Y:0.29- 0.31
  Luminous intensity : 100-140MCD
  Forward voltage: 2.8-3.2V/led

• Forward current:5-10mA/LED
  Customized Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white

• High luminous intensity and reliability

• Low power Consumption

• Extremely low current

• Low evelopment cost

• Stable performance

• Continuous uniform segments

• Long lifetime

• Easy assembly

• IC compatible

• Certificate: RoHS

• Application:
  Widely used for instrument panels,home appliances,digital temperature/humidity indicators and so on .



• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC




  Code:Pure Green -G

Code:Ultra Bright White -WH

Code:Ultra Bright Blue -BH

Code:Ultra Bright Red -UR

Code:Super Bright Red -R

Code:Orange -F

Code:Amber/Yellow -Y

Code:Yellow Green- J
