| Type: | Character | Brand Name: | LIGHT-BO |
|---|---|---|---|
| Polarity: | Common Cathode | Emitting Color: | Super Bright Amber |
| Digit Height: | 9.2mm (0.36-inch) | Application: | Instrument Panel Indicator |
| Outer Dimensions: | 43.5*14.0*7.0mm | Digits: | 6 |
| Packaging Details: | EPE+CARTON | Forward voltage: | 1.8-2.2V/LED |
| Forward current: | 5-10mA/LED |

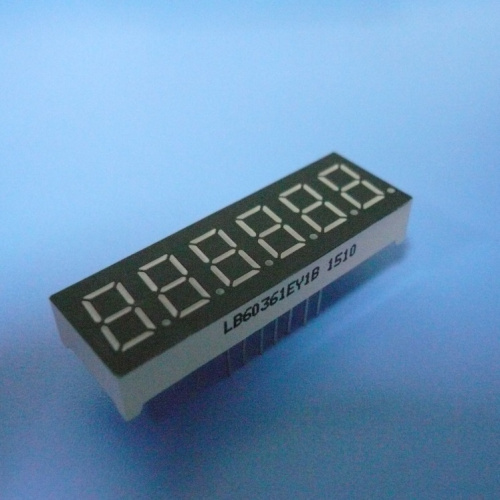

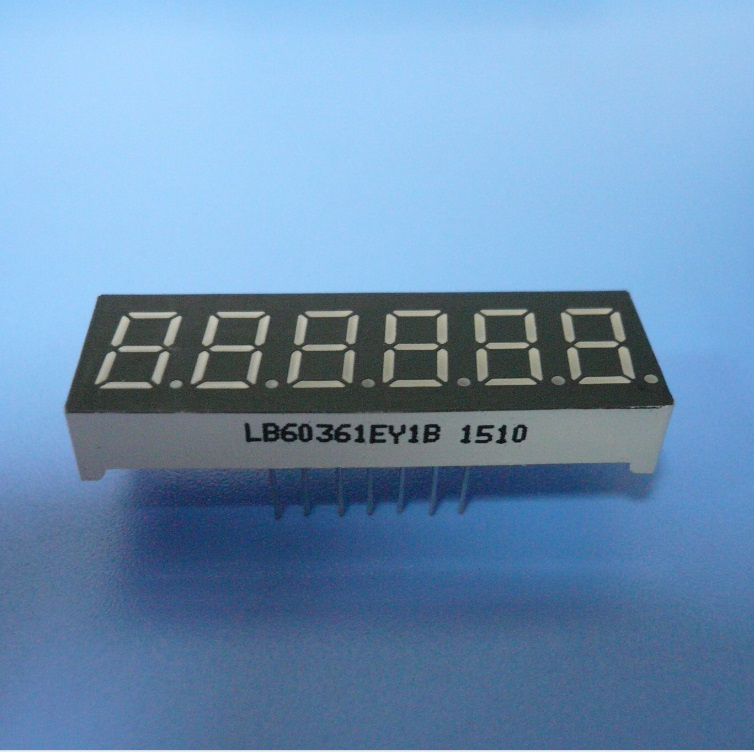

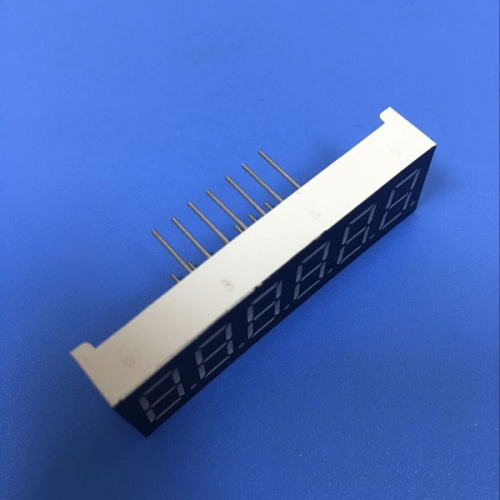

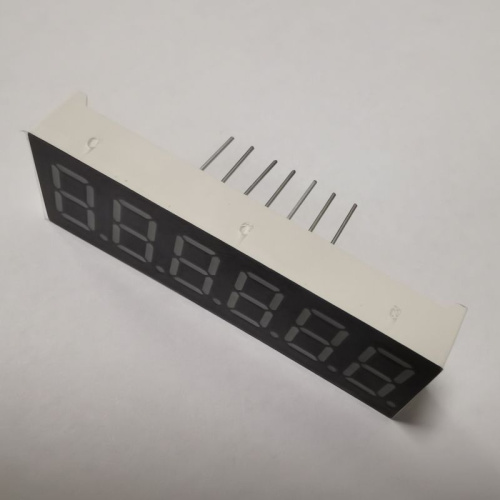

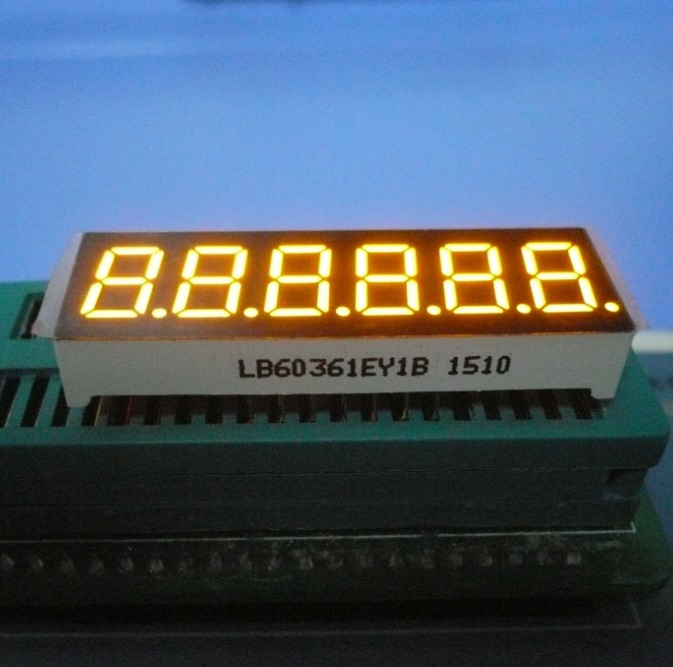

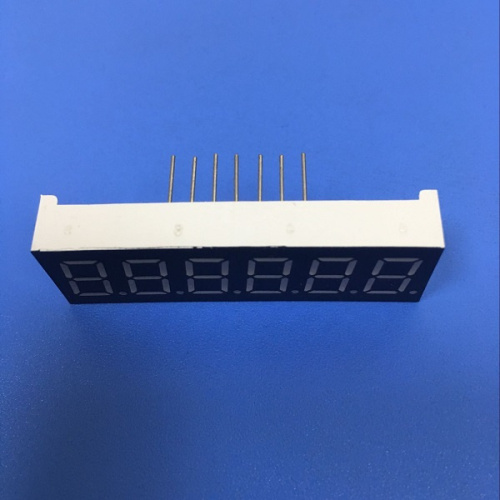

Super Bright Amber 0.36" 6 Digit 7 Segment LED Display Common Cathode for Instrument Panel Indicator
Digit height: 9.2mm (0.36-inch)
Outer dimensions:43.5 x 14.0 x 7 mm
Common cathode
Made with white segments, black surface
Display Colour: Super Bright amber
Wavelength : 585-595nm
Luminous intensity : 50-60 mcd
Forward voltage: 1.8-2.2V/LED
Forward current:5-10mA/LED
Emitting colors: red, blue, yellow green, pure green, amber, orange, yellow and white
High luminous intensity and reliability
High luminous intensity and reliability
Low power Consumption
Extremely low current
Low evelopment cost
Stable performance
Continuous uniform segments
Long lifetime
Easy assembly
IC compatible
Certificate: RoHS
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 90 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 620 | 625 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 470 | nm |
Code:Ultra Bright White -WH
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Color:Pure Green
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=20mA | 2.5 | 3.0 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=20mA | 120 | 160 | mcd | |
Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
Wavelength | Dλ | If=20mA | 515 | 525 | nm |
Code:Yellow Green- J/JU
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 569 | 573 | nm |
Code:Amber/Yellow -Y
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Applications:
Audio equipments or instrument panels
Home electronic appliances
Numeric displays
Multimedia products
General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
Products Applications
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
