| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | FOB,EXW |
| Payment Terms: | T/T, WU |
| Place of Origin: | Guangdong, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 50000PCS/Day |
| Packing: | EPE + Carton |
| Delivery Date: | 15- 20 Days |
| Type: | Character | Brand Name: | LIGHT-BO |
|---|---|---|---|
| Tube Chip Color: | Single Color | Origin: | Shenzhen China |
| LED Color: | Ultra Bright White | Specification: | 37.6*19*8MM |
| Transport Package: | EPE + Carton | Forward Voltage: | 2.8-3.2V/led |
| Forward Current: | 5-10mA/LED | Trademark: | LIGHT-BO |
3 digit 14.2mm Common Anode Ultra Bright White Grey Surface 7 Segment LED Display for Temperature Controller
Product Description:
3 Digit 14.2mm 7 Segment LED Display
Character height: 0.56"( 14.2mm)
Outer dimensions: 37.6*19*8 mm
Polarity: Common cathode
Forward voltage: 2.8-3.2V/led
Forward current:5-10mA/ led
Made with yellow epoxy, grey surface
Ultra bright White
Emitting colours: red, blue, green, white, amber, orange and yellow
Product Parameters
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(3 sec) | Th | 260 | ºC |
Code:Ultra bright white-WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | λ | If=10mA | 20 | nm | ||
| Color Temperature | K | If=10mA | 6000 | 6500 | K | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25ºC | ||||||
Product Feature:
Forward voltage (high luminous intensity output)
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Provides excellent reliability in bright ambient light
Stable performance
Long lifetime
Meet RoHS/REACH compliant
Applications:
Audio equipments or instrument panels
Home electronic appliances
Numeric displays
Multimedia products
General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on.
SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .
LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

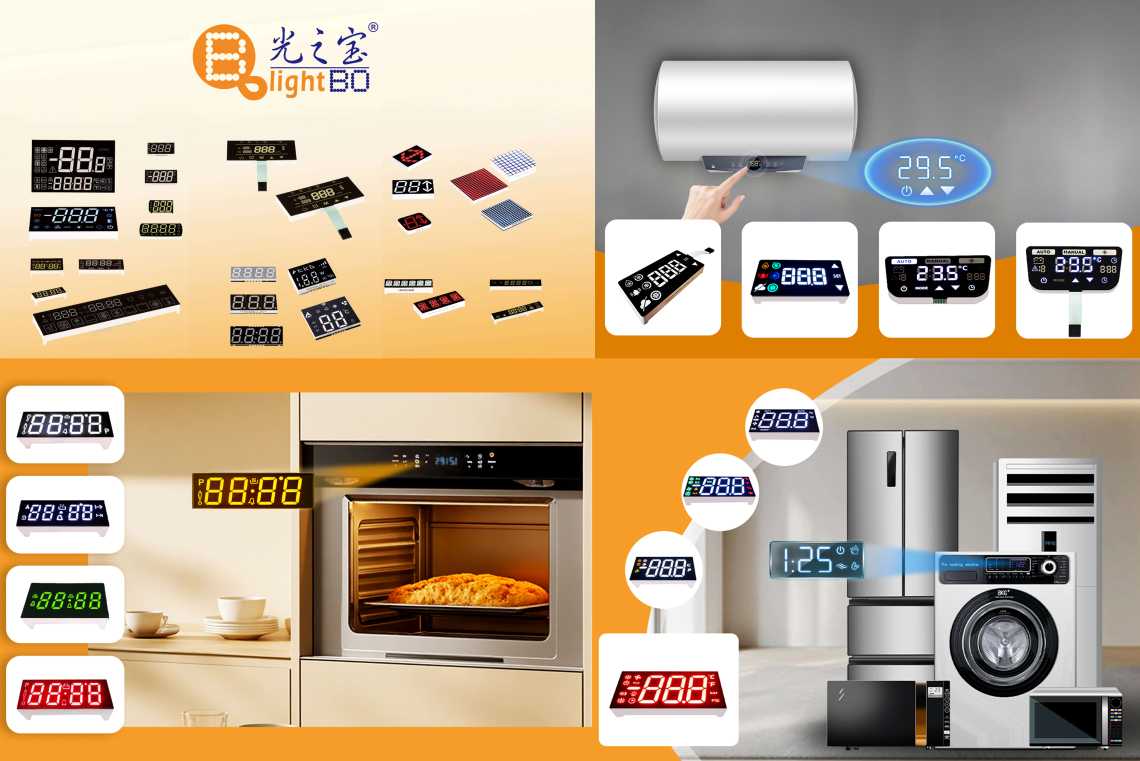

Products Applications
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on

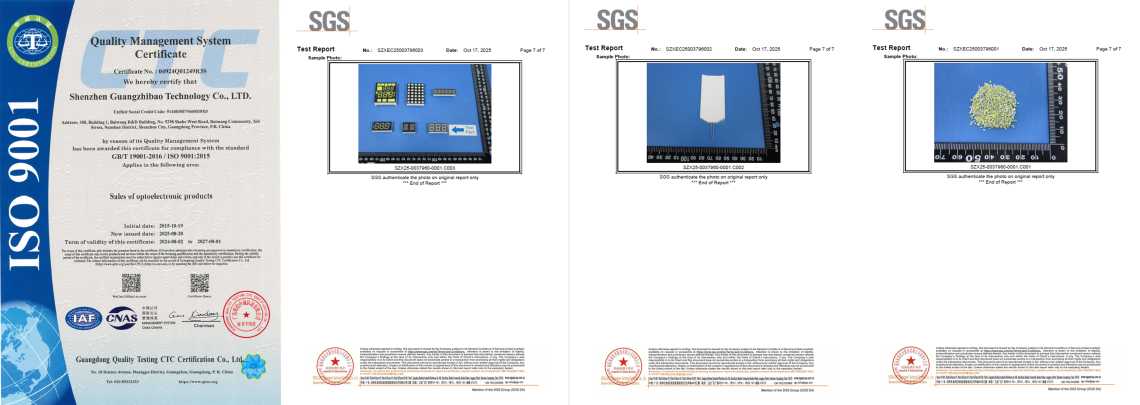

Certifications

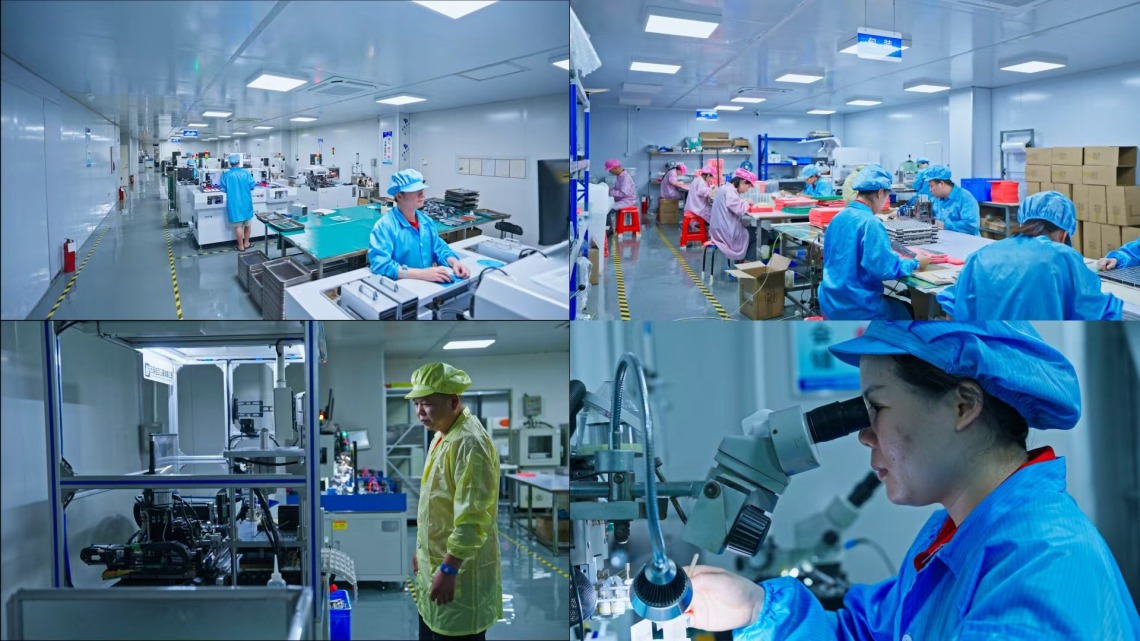

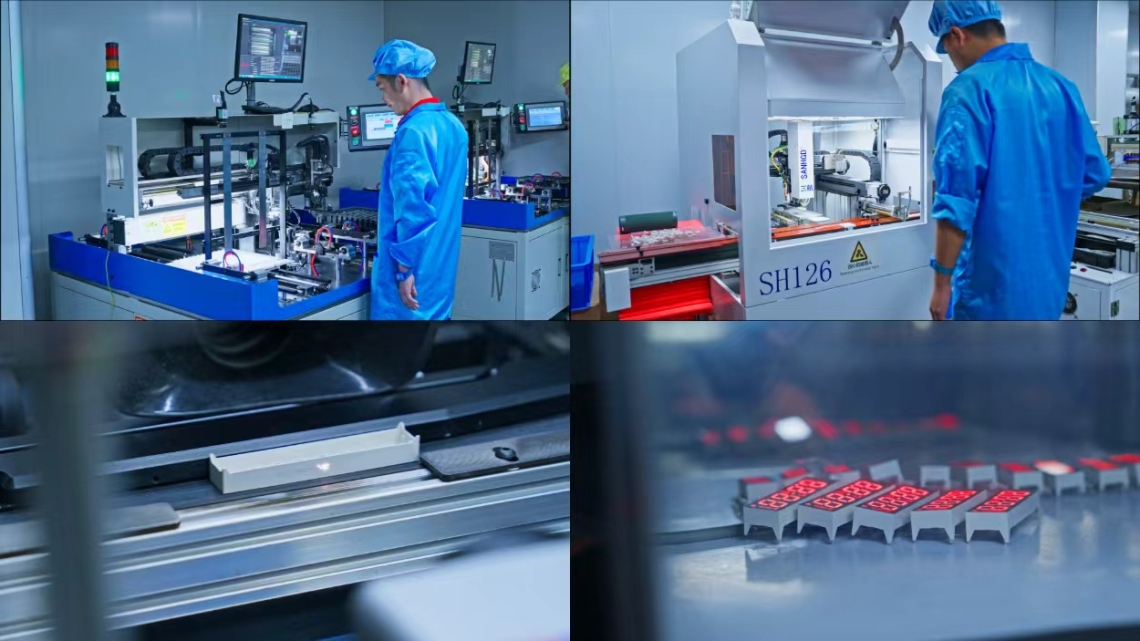

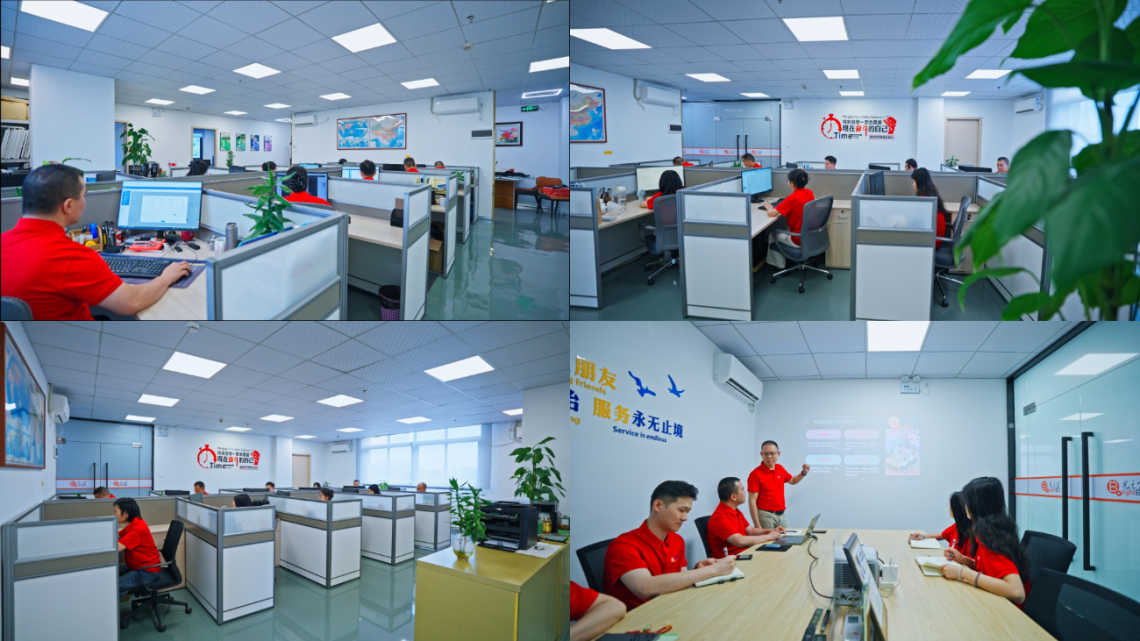

Office and Factory Overview
Company Exhibitions
SHIPPING SERVICES
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ?
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time?
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment?
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list?
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products?
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else?
A: Yes , we will not show it or sell to others without your authorization.
Q13 What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods?
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products?
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
