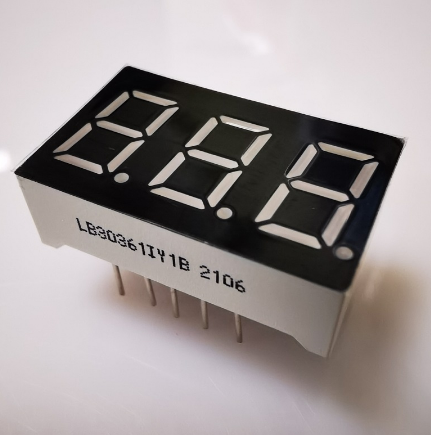

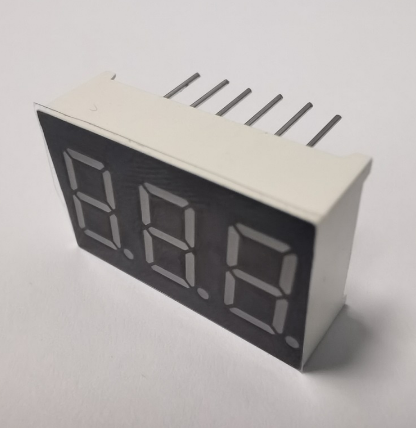

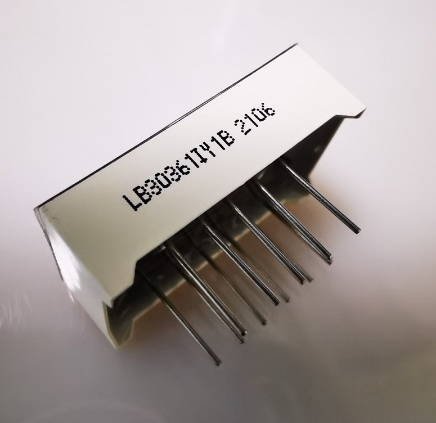

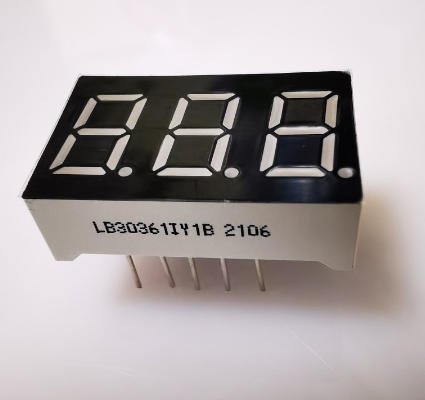

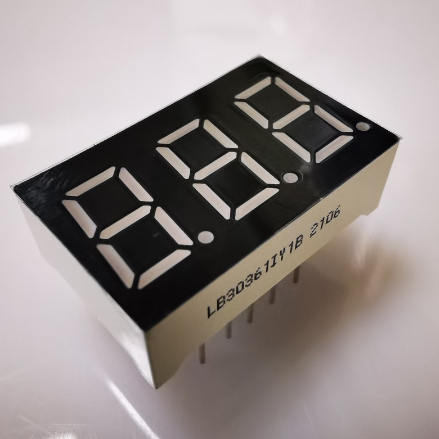

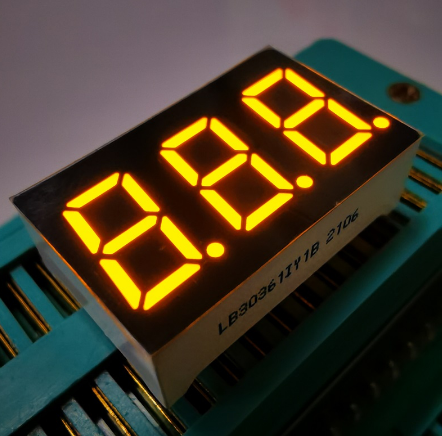

Common Anode 3 Digit 0.36" Ultra Green 7-segment LED Display

Common anode 3 digit 0.36" ultra green 7 segment led displays- 22.5 x 14.0 x 7.2mm

       Features:

       Triple-digit 0.36-inch 7-segment LED displays

Character height: 9.2mm (0.36 inch)




Made with white segments black surface

Emitting color: available in red, blue, yellow green, pure green, white, amber, orange and yellow




Package dimensions: 22.50 x 14.0x7.2mm

Common anode/common cathode




Good consistency

Easy assembly

IC Compatible

High luminous intensity

Low power consumption

Stable performance

Meet RoHS Compliant



APPLICATION:

Widely used for digital displays,digital indicatops, home appliances,isntrument panels.



Code:Ultra Bright Red -UR

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	90		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	620		625	nm

Code:Ultra Bright Blue -BH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		470	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃
