Ultra bright white 0.28" 3 digit 7 segment led display common anode for instrument panel
Product Overview
Introducing the Ultra Bright White 0.28-Inch 3-Digit 7-Segment Common Anode LED Display—a miniaturized, high-performance numeric solution engineered for space-constrained devices: instrument panels, equipment testers, small home appliances, and temperature controllers. Designed to balance tiny size, clear visibility, and energy efficiency, this display excels at showing concise metrics: compact thermostat temps, equipment test readings or small appliance statuses.
Its 7.00mm character height ensures readability from 0.5–1.5 meters (typical distance for handheld or small-mounted devices), while the slim 22.5×10×6.1mm form factor fits into dense PCB layouts or tiny appliance panels—no need to sacrifice functionality for size. The yellow segments on a black face boost contrast with ultra bright white light (100-120mcd), avoiding glare in dim spaces and resisting washout in bright environments.
With common anode polarity, low power consumption (5-10mA/LED), and RoHS compliance, this display combines durability, space efficiency, and eco-friendliness—ideal for 24/7 operation in compact electronic devices.

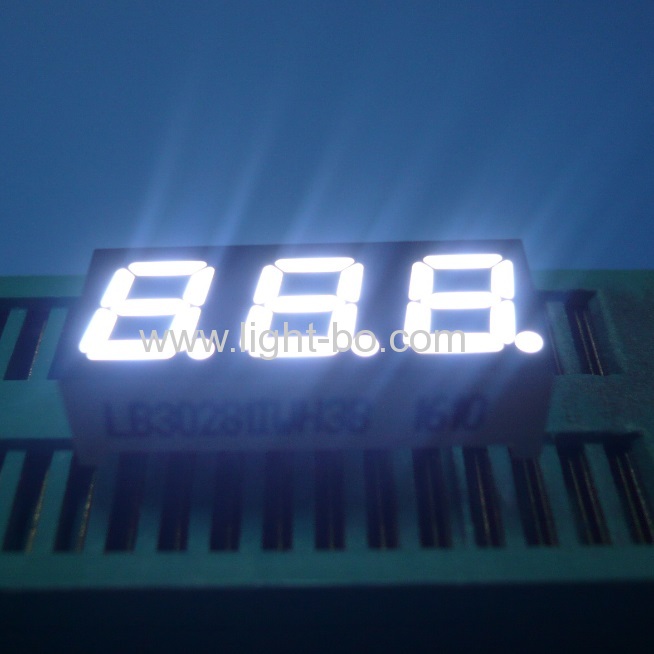

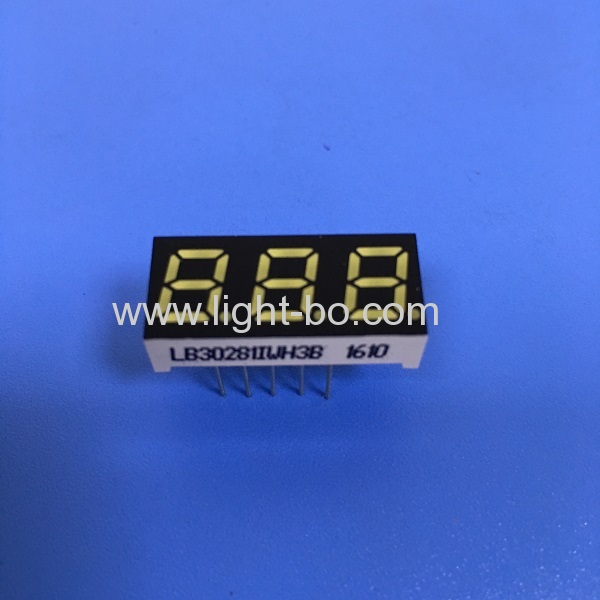

Product Image
Key Features (Compact Device-Optimized)
1. Ultra-Compact Design for Space-Limited Use
Miniature Dimensions (22.5×10×6.1mm): One of the slimmest 3-digit 7-segment displays available, fitting into dense instrument panels or tiny home appliances. No need to resize PCBs or redesign device enclosures.
7.00mm (0.28-Inch) Character Height: Balances small size with readability—large enough to distinguish digits for precision metrics but small enough for handheld equipment.
Dual Mounting Options: Easy to mount on PC boards (for automated mass production) or sockets (for manual replacement/maintenance)—flexible for both high-volume devices and custom equipment builds.
2. Superior Visibility in Compact Scenarios
Ultra Bright White Illumination (100-120mcd): High luminous intensity ensures clarity in challenging lighting—bright enough for well-lit workbenches and visible in dim enclosures. The neutral white light avoids color distortion, making decimal points sharp.
Yellow Segments on Black Face: The yellow segment base enhances contrast with the black background, eliminating "fuzzy" edges on small digits—critical for accurate reading of fine values that could impact device performance.
Continuous Uniform Segments: No "dead spots" or uneven brightness across segments—laboratory-tested to ensure<2% intensity variation, so every bar of digits is consistent, avoiding misinterpretation.
3. Energy Efficiency & Reliable Performance
Low Power Consumption (5-10mA/LED): Extremely low current draw minimizes energy use, ideal for battery-powered compact devices — extends battery life by 30% compared to higher-current displays, reducing user hassle of frequent charging.
Stable Operation in Variable Environments: Withstands temperature fluctuations and minor vibrations —maintains consistent brightness, no flickering during value updates.
Long Lifespan (50,000+ Hours): High-quality white LED chips match the 5–8 year service life of most compact devices, reducing maintenance downtime and replacement costs.
4. Versatility & Compliance
Multi-Color Options: Beyond ultra bright white, available in red (for alerts), blue (modern aesthetics), yellow green, pure green, amber, and orange—flexible for functional cues or brand-specific device designs.
Common Anode Polarity: Compatible with standard driver ICs widely used in compact devices—simplifies circuit design, no need for custom polarity adapters, and supports seamless integration with existing firmware.
RoHS Compliant: Free from lead, mercury, and harmful substances—safe for consumer devices and industrial equipment, meeting global safety standards for export to EU, North America, and Asia.
| Category | Parameter | Specification (Compact Device-Optimized) |
| Basic Design | Display Type | 3-Digit 7-Segment LED Display |
| Polarity | Common Anode | |
| Character Height | 0.28 inches (7.00mm) | |
| Outer Dimensions (L×W×H) | 22.5 × 10 × 6.1mm | |
| Segment/Surface Finish | Yellow segments on Black Face | |
| Optical Performance | Emitting Color | Primary: Ultra Bright White; Optional: Red/blue/yellow green/pure green/amber/orange |
| Luminous Intensity | 100-120 mcd | |
| Color Coordinate (X/Y) | 0.29-0.31 (neutral white) | |
| Electrical Parameters | Forward Voltage (VF) | 2.8-3.2V per LED (white); 1.8-2.2V (red/amber/orange); 2.8-3.2V (blue/green) |
| Forward Current | 5-10mA per LED | |
| Power Consumption | Low (extremely low current draw) | |
| Quality & Compliance | Core Advantages | Uniform segments, stable performance, easy mounting, long lifespan |
| Compliance | RoHS Compliant |
Applications
This display is tailored for space-constrained electronic devices, including:
Instrument Panels: Compact industrial testers , medical devices , or automotive dash accessories.
Equipment Test Devices: Handheld multimeters , power supply monitors or sensor calibrators.
Small Home Appliances: Mini humidifiers, portable air purifiers or travel-sized thermometers.
Temperature Controllers: Compact HVAC panels, fridge mini-monitors or incubator controllers.
Why Choose This Display for Compact Devices?
Space Efficiency: Ultra-small dimensions fit into dense PCBs or tiny enclosures—enables multi-display setups without sacrificing functionality.
Precision Readability: Yellow segments on black face + uniform brightness ensure accurate digit recognition for fine metrics that can't be misread.
Battery-Friendly: Low current use extends life for portable devices—critical for users relying on handheld testers or travel appliances.
Easy Integration: Common anode polarity + dual mounting options simplify production and maintenance—works with standard ICs and PCBs.
Global Compliance: RoHS certification ensures use in international markets, aligning with safety standards for consumer and industrial compact devices.
Product Parameters
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
