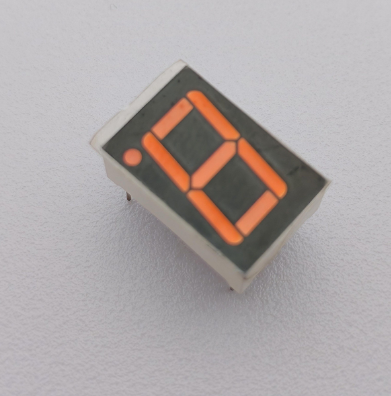

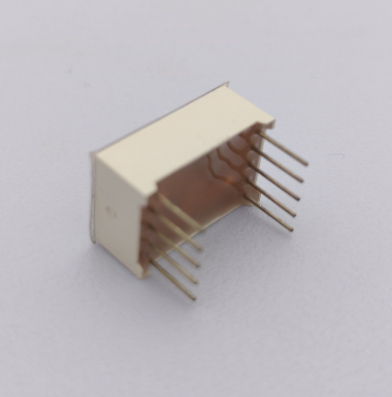

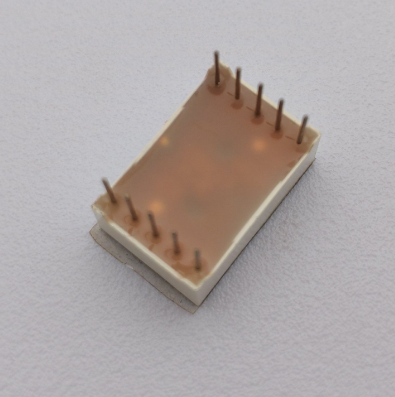

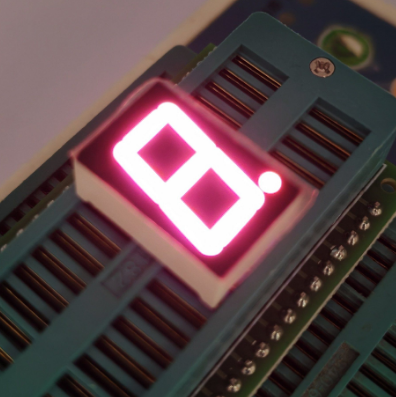

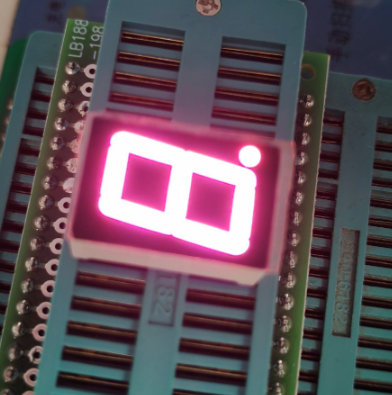

Ultra bright Pink 14.2mm (0.56") Single Digit 7 Segment LED Display Common Anode for Digital Indicator
Code:Super Bright Red -R
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 90 | 100 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 620 | 625 | nm |
Code:Ultra Bright Blue -BH
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 100 | 120 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 460 | 470 | nm |
Absolute Maximum Ratings(Ta=25℃)
Parameter | Symbol | Ratings | Unit |
Forward Current(per dice) | Ipm | 20 | mA |
Reverse Voltage(per dice) | Vr | 5 | V |
Power Dissipation(per dice) | Pm | 80 | mW |
Operating Temperature Range | Topr | -40~+120 | ℃ |
Storage Temperature Range | Tstg | -40~+120 | ℃ |
Solder Temperature(3 sec) | Th | 260 | ℃ |
Product features:
OEM and ODM orders are accepted
High luminous intensity and reliability
Big viewing angle
Stable performance
Long lifetime
Easy assembly
IC Compatible
RoHS directive-compliant
Applications:
Audio equipments or instrument panels
Home electronic appliances
Numeric displays
Multimedia products
General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on
