0.8" Ultra bright white 16 segment led diplay common anode for instrument panel
Ultra White Single Digit LED
0.8inch 16-Segment Anode
Alphanumeric Elevator Display
Common Anode 16-Segment
Elevator Indicator LED 0.8"
Product Overview
LightBo's 16-segment alphanumeric LED display, featuring a 0.8-inch (20.32mm) character height and ultra bright white emission, is engineered to deliver versatile performance for audio equipment and instrument panels. With compact outer dimensions (20×27.7×8.5mm) and a common anode configuration, it combines high efficiency with uniform luminous distribution across all 16 segments—ensuring clear readability of both letters and numbers, even in bright ambient light. Designed for easy integration, this display balances low power consumption, stable performance, and RoHS compliance, making it ideal for audio devices, instrument panels, and general-purpose digit indicators. Custom sizes and colors are available to suit unique application needs.

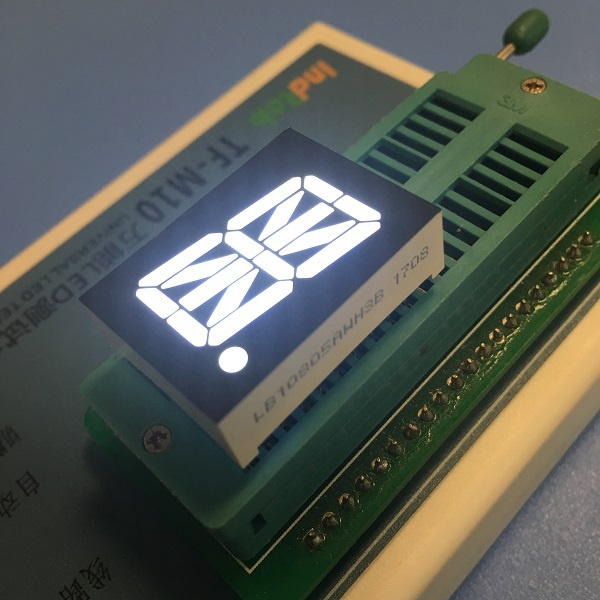

Main Product Image
Key Features
16-Segment Alphanumeric Versatility: Displays both letters (A-Z) and numbers (0-9) with precision, making it ideal for audio equipment (e.g., track labels) and instrument panels requiring text+numeric readouts.
Ultra Bright White Emission: Vivid white light ensures high visibility in bright environments, with consistent luminous distribution across all 16 segments for clear character rendering.
Compact, Industrial Design: 20×27.7×8.5mm outer dimensions and 0.8-inch (20.32mm) character height fit seamlessly into standard equipment, adhering to industrial size standards.
Energy Efficiency: High efficiency with extremely low current and power consumption, ideal for long-term operation in audio devices and instruments.
Customizable Options: Accepts customized sizes and colors to match specific design requirements, enhancing flexibility for unique applications.
Durable Performance: Stable operation, long lifespan, and RoHS compliance ensure reliability in both commercial and industrial settings.
Easy Integration: Simple assembly and compatibility with standard circuits streamline installation into PC boards and equipment panels.

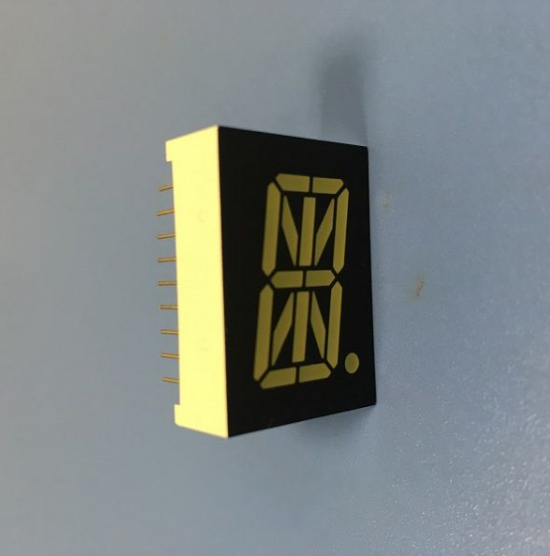

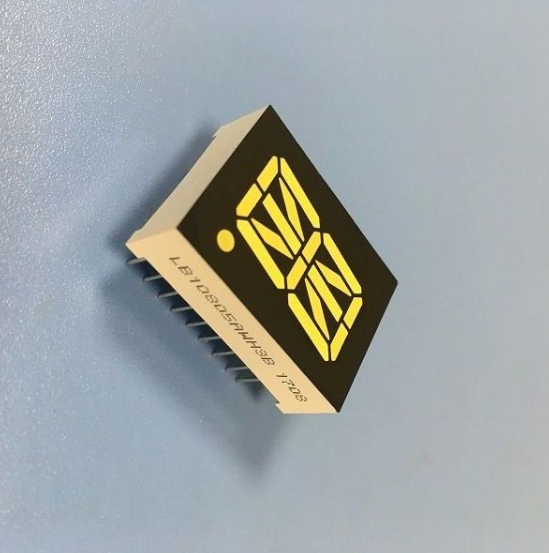

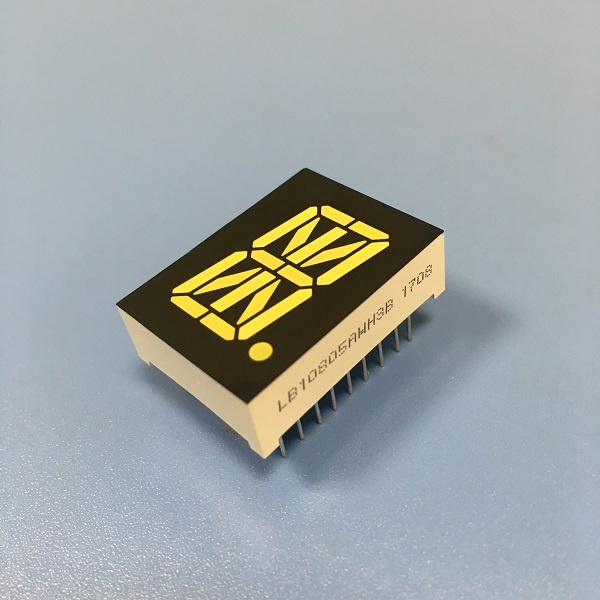

Detail Image
| Specification | Details |
| Brand Name | LightBo |
| Type | Standard 16-segment alphanumeric |
| Character Count | Single-digit (alphanumeric: letters/numbers) |
| Character Height | 0.8 inch (20.32mm) |
| Outer Dimensions | 20×27.7×8.5mm |
| Polarity | Common Anode |
| Emitting Color | Ultra bright white (custom colors available) |
| Key Features | High efficiency, low power consumption, RoHS compliant |
| Compliance | RoHS directive-compliant |
Applications
Ideal for:
Audio equipment (track labels, settings displays)
Instrument panels (alphanumeric indicators)
General-purpose digit and character displays
Devices requiring both letters and numbers (e.g., model codes, status updates)
Application Scenario Image
Order & Logistics
Minimum Order: 1000 pieces
Trade Term: EXW
Payment Terms: T/T
Origin: Guangdong, China (Mainland)
Transport Options: Ocean, Air, Land
Production Capacity: 20,000 pcs/day
Packing: EPE + Carton (secure protection for transit)
Delivery Time: 5-7 days
Why Choose This Display?
LightBo's 16-segment alphanumeric display combines ultra bright white illumination with versatile character rendering (letters + numbers), making it perfect for audio equipment and instrument panels. Its 0.8-inch size ensures readability, while low power consumption and RoHS compliance guarantee efficiency and safety. With customizable options, easy assembly, and reliable performance in bright environments, it's a flexible solution for diverse alphanumeric display needs. Backed by high production capacity and fast delivery, it's a trusted choice for your equipment indicators.
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
