Ultra bright Red 4 Digit 0.4inch LED Display 7 Segment Common Cathode for Instrument Panel
Product Overview

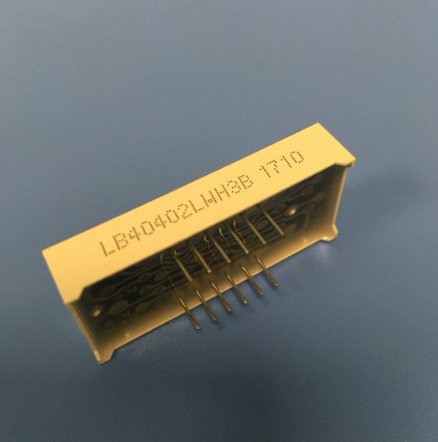

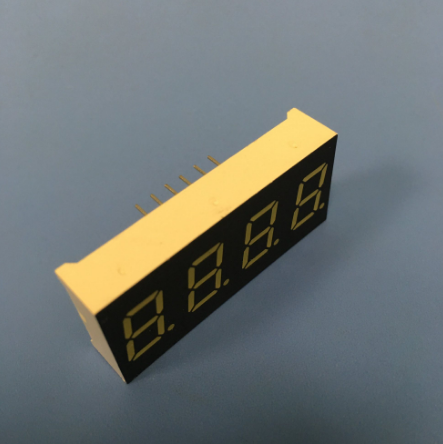

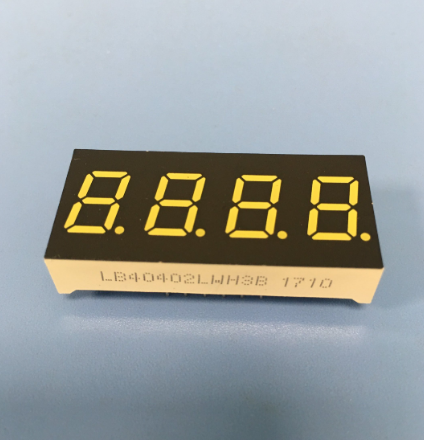

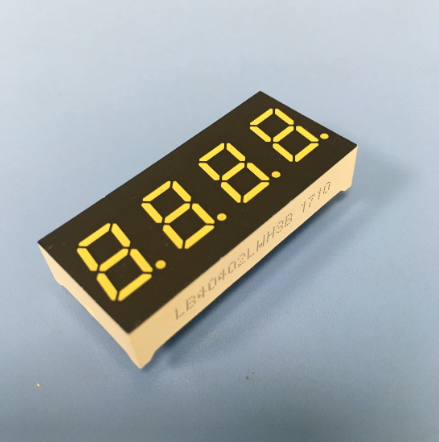

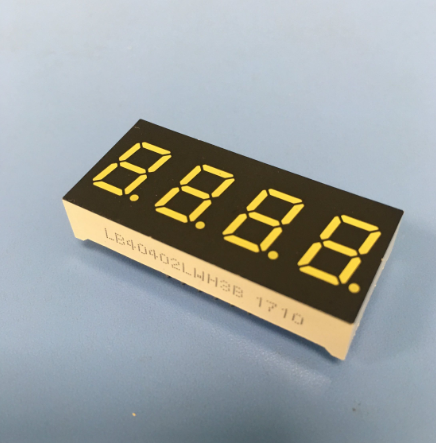

This 0.4-inch 4-digit common cathode 7-segment LED display is an instrument panel-optimized solution, engineered for clear, reliable numeric readouts of temperature, humidity, process parameters, and equipment status. Designed with yellow segments on a black surface and ultra bright white light (6000–6800K color temperature), it delivers exceptional contrast that cuts through ambient light (factory overhead lamps, home room lighting) without eye strain—ideal for viewing distances of 0.5–3 meters (typical for instrument panels and home appliances).
With 4-digit capacity (supports values 0000–9999, plus decimal points for precision metrics), it fits seamlessly into compact PCB layouts of set-top boxes, home appliance controllers, and industrial process monitors. The common cathode polarity ensures compatibility with mainstream driver ICs, while low power consumption and long lifespan make it suitable for 24/7 operation in diverse scenarios—from residential set-top boxes to industrial process controllers.
Product Description
Core Technical Specifications
| Category | Parameter | Specification (Instrument Panel-Optimized) |
| Basic Design | Display Type | 4-Digit 7-Segment LED Display |
| Polarity | Common Cathode | |
| Digit Height | 0.4 inch (≈10.2mm) | |
| Segment/Surface Finish | Yellow Segments on Black Surface | |

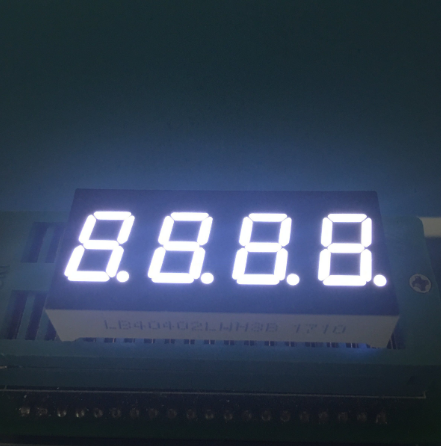

| Optical Performance | Primary Emitting Color | Ultra Bright White |
| Color Temperature | 6000–6800K (cool white, high contrast) | |
| Luminous Intensity (IV) | 80–100 mcd | |
| Optional Emitting Colors | Red, Blue, Green, Amber, Orange, White | |
| Electrical Parameters | Forward Voltage (VF) | 2.8–3.2V per LED (white/blue/green) |
| Forward Current | 5–10mA per LED | |
| Power Consumption | Low (extremely low current draw) | |
| Quality & Compliance | Core Advantages | High luminous intensity, uniform segment brightness, stable performance, easy assembly |
| Compliance | RoHS Compliant |
Key Features (Instrument Panel-Optimized)
1. High-Contrast Visibility for Precision Metrics
Ultra Bright White Light: Cool white light with 80–100mcd intensity ensures crisp readability of 4-digit values even in bright ambient environments—prevents misreading critical parameters in industrial process control or home appliance operation.
Yellow Segments + Black Surface Contrast: The color combination amplifies segment visibility, eliminating "washout" from sunlight or overhead lighting. Critical for instrument panels where data accuracy directly impacts equipment performance or user safety.
Uniform Luminous Distribution: Segments emit consistent brightness with no hot spots or dim edges, ensuring digits and decimal points are clear and distortion-free—ideal for precision indicators like temperature/humidity controllers.
2. Industrial-Grade Durability & Energy Efficiency
Stable Performance in Variable Conditions: Withstands temperature fluctuations (-10°C to 60°C, typical for indoor industrial/residential use) and minor vibrations (from equipment operation or handling)—no flickering or segment failure during long-term 24/7 operation.
Low Power Consumption: 5–10mA per LED minimizes energy use, extending battery life for portable instruments and reducing operational costs for 24/7 industrial equipment.
Long Lifespan: High-quality LED chips and robust construction match the 8–10 year service life of most instrument panels and home appliances—eliminates frequent replacements and maintenance downtime.
3. Easy Integration & Manufacturing-Friendly Design
Common Cathode Polarity: Compatible with standard driver ICs and microcontrollers—simplifies circuit design for instrument manufacturers and integrates seamlessly with data sampling firmware.
Compact Profile: Engineered to fit dense PCB layouts of set-top boxes, home appliance controllers, and small instrument panels—no need for custom PCB redesigns, supporting automated production lines for high-volume manufacturing.
Multi-Color Versatility: Beyond the primary ultra bright white, optional colors enable functional differentiation for diverse applications:
Red: High-visibility for alarm/error values
Green: Normal/optimal status cues
Blue: Modern aesthetics for smart home appliance controllers
Product Parameters
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
