Pure Green 4 digit 0.56 inches LED Clock Display
Pure Green 4-Digit LED
0.39" Common Anode
7-Segment Clock Display
STB 4-Digit LED
Green STB Clock LED
Product Overview
This high-versatility 7-segment LED display, featuring a 0.56-inch (14.2mm) digit height and dual polarity, is engineered for universal compatibility across set-top boxes, home appliances, clock displays, and digital timers. With compact packing dimensions (50.3×19mm) and a high-contrast design—white segments on a black surface—it delivers consistent performance: uniform luminous intensity, low power consumption, and RoHS compliance. Available in 7 vibrant colors, it supports OEM/ODM customization to match unique device requirements, making it a go-to solution for global manufacturers. Backed by strong competitive advantages and export reach across 6 major regions, it balances reliability with flexibility for diverse market needs.
Key Specifications
| Specification | Details |
| Digit Height | 14.2mm (0.56 inch) |
| Packing Dimensions | 50.3×19mm |
| Polarity | Dual |
| Surface Design | White segments on black surface |
| Emitting Colors | Red, blue, green, amber, orange, white, yellow |
| Core Compliance | RoHS Directive-compliant |
| Customization Support | OEM/ODM orders accepted |
Core Product Features
1. Dual Polarity: Universal Circuit Compatibility
Eliminates the need to source separate CC/CA models—works seamlessly with both common cathode and common anode circuits. This simplifies inventory management for manufacturers producing mixed product lines, reducing development costs and production delays.
2. High-Contrast Design & Uniform Illumination
White Segments on Black Surface: Minimizes glare and maximizes digit sharpness, ensuring clear readability in bright kitchens or dim bedrooms.
Even Luminous Distribution: Light spreads consistently across all 7 segments, avoiding "hotspots" or dark spots—critical for accurate readings of timer values or set-top box channel numbers.
3. Energy Efficiency for Long-Term Use
Low Power Consumption & Extremely Low Current: Reduces energy usage, making it ideal for 24/7 operated devices or battery-powered digital timers.
Durable Performance: Stable operation and RoHS compliance ensure safety and longevity, even in high-use scenarios.
4. Multi-Color Flexibility
7 emission colors cater to diverse application needs:
Red/Amber: Ideal for alerts or high-visibility displays
Green/White: Suited for "normal status" readouts or clock displays.
Blue/Yellow/Orange: Perfect for brand-specific aesthetics

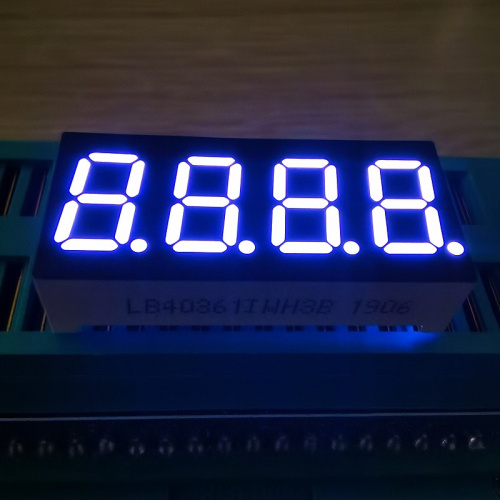

Product Image
| Advantage CategoryKey | Details |
| Product Quality | Brand-name parts ensure consistent performance; RoHS compliance meets global safety standards. Luminous intensity output and even segment lighting guarantee reliable readability. |
| Supply Chain Flexibility | Prompt Delivery: Streamlined production ensures onschedule shipments to meet tight manufacturing timelines. Small Orders Accepted: Supports prototype development, low-volume trials, or niche market needs. Distributorships Offered: Enables regional partners to expand market reach. |
| Sustainability & Compliance | Green Product: RoHS-compliant, aligning with EU, North American, and Asian environmental regulations. Form A Certification: Facilitates duty-free or reduced-duty exports to eligible markets. |
| Customization & Service | OEM/ODM Support: Adjusts digit count, polarity, color, or dimensions to match custom device designs. Strong Reputation: Proven reliability in consumer electronics and industrial instrument panels. Competitive Pricing: Balances quality with cost-effectiveness for mass production. |
Global Reach: Main Export Markets
This display is tailored for global distribution, with a strong presence in:
Eastern Europe: Compliant with EU RoHS and CE standards for household appliances.
North America: Meets FCC and UL-related safety requirements for set-top boxes and digital timers.
Mid East/Africa: Adaptable to high-temperature environments
Central/South America: Supports small-batch orders for local appliance manufacturers.
Asia: Aligns with regional manufacturing needs
Western Europe: Suits premium device aesthetics
Applications
Ideal for:
Set-Top Boxes: Channel numbers, signal strength, or program timer values
Home Appliances: Microwave timers, refrigerator temperature indicators, or oven control panels.
Clock Displays: Wall-mounted or desktop clocks
Digital Timers: Kitchen timers, fitness trackers, or industrial countdown devices.
Instrument Panels: Auxiliary displays for industrial gauges, medical devices, or automotive voltage monitors.
Why Choose This Display?
This 0.56-inch 7-segment LED display stands out as a global, customer-centric solution:
Dual polarity and multi-color options eliminate compatibility and design limitations.
Strong competitive advantages reduce supply chain risks.
OEM/ODM support and global export compliance make it adaptable to regional market needs.
For manufacturers seeking a reliable, versatile display for consumer electronics or industrial panels, it delivers quality, flexibility, and value—backed by a track record of serving 6 major global regions.
Product Parameters
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Shenzhen Guangzhibao Technology Co., Ltd. (Brand: Light-Bo) stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company . With more than 15 years OEM and ODM experience .
Light Bo has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.
Products Applications
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
Certifications
Office and Factory Overview
Company Exhibitions
Shipping Services
FAQ
FAQ(Frequently Asked Questions)
Q1 Are you trading company or manufacturer?
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products?
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ?
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test?
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time?
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment?
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices?
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list?
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices?
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be?
A: It depends on the size of your shipment and the method of shipping.We will offer the charge to you as you requested.
Q11 Can you do custom design products?
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else?
A: Yes , we will not show it or sell to others without your authorization.
Q13 What will be the samples lead time for customized products?
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods?
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products?
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment
