9 digit 0.36 inch common cathode white 7 segment led display for home appliances control
Custom 8-Digit RGBY LED
0.52"/0.36" 7-Segment
8-Digit Temp LED
RGBY Temp Indicator
Custom 7-Segment Temp
Product Overview
This high-performance 9-digit 7-segment LED display, engineered for extended numeric readouts, features a 0.36-inch (9.2mm) character height and ultra bright white emission—ideal for digital displays requiring multi-digit precision. With compact outer dimensions (52×22.7×9.2mm) and a high-contrast design (white segments on a black surface), it delivers consistent visibility via optimized X/Y ratios (0.29-0.31) and 100-120mcd luminous intensity. Configured as common cathode, it combines energy efficiency with fast heat dissipation and stable performance, ensuring reliability in 24/7 operated devices like home appliances and instrument panels. RoHS compliant and easy to assemble, it supports 8 additional emission colors to match diverse application needs.
Key Features
1. 9-Digit Layout for Extended Numeric Needs
The 9-digit design enables display of long-form values—critical for applications like temperature/humidity indicators, set-top box channel numbers, or industrial counters. The 0.36-inch (9.2mm) character height balances readability with space efficiency, fitting seamlessly into slim device enclosures.
2. Ultra Bright White Emission & Uniform Illumination
100-120mcd Intensity: Vivid white light ensures high visibility in bright or dim environments, from sunlit kitchens (home appliances) to dim industrial control rooms (instrument panels).
Optimized X/Y Ratio: 0.29-0.31 (both X and Y) guarantees balanced light distribution across all 9 digits, eliminating "hotspots" or uneven segment glow—critical for clear reading of multi-digit data.
White Segments on Black Surface: High-contrast combination minimizes glare and enhances digit sharpness, even when viewed from off-center angles.
3. Efficient Performance & Heat Management
Low Power Operation: Extremely low current (5-10mA/LED) and forward voltage (2.8-3.2V/LED) reduce energy consumption, making it suitable for battery-powered devices or 24/7 equipment.
Fast Heat Dissipation: Engineered to disperse heat quickly, preventing performance degradation or segment damage during prolonged use—ideal for enclosed instrument panels or high-power home appliances.
Stable Long-Term Use: Continuous uniform segments and robust construction ensure consistent performance, avoiding digit fading or failure over years of operation.
4. Easy Integration & Compliance
Common Cathode Polarity: Matches standard circuit designs for multi-digit displays, simplifying integration with common driver ICs (IC-compatible) and reducing manufacturing complexity.
Simple Assembly: Designed for hassle-free mounting on PCBs, with a compact 52×22.7×9.2mm profile that fits into space-constrained device layouts.
RoHS Compliant: Meets global environmental standards, ensuring safety for household and commercial applications.

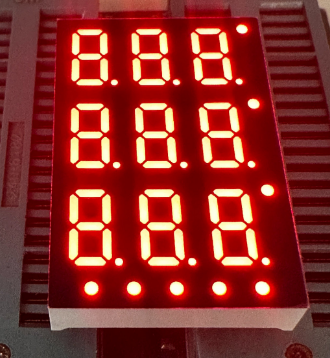

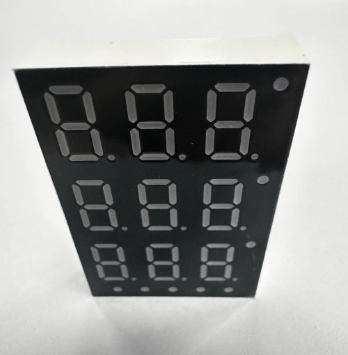

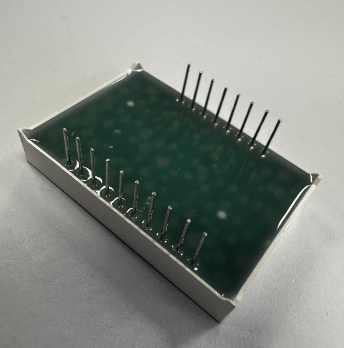

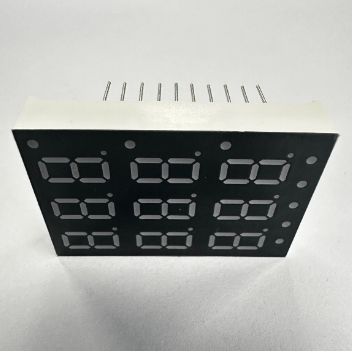

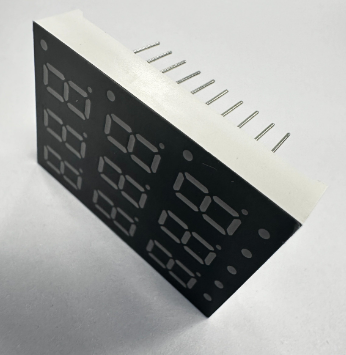

Product Image
| Specification | Details |
| Type | 9-digit 7-segment LED display |
| Character Height | 9.2mm (0.36 inch) |
| Outer Dimensions | 52×22.7×9.2mm |
| Polarity | Common Cathode |
| Surface Design | White segments on black surface |
| Emitting Color | Ultra Bright White (options: red, blue, yellow green, pure green, amber, orange, yellow) |
| X/Y Ratio | 0.29-0.31 (both X and Y) |
| Luminous Intensity | 100-120mcd |
| Forward Voltage | 2.8-3.2V |
| Forward Current | 5-10mA/LED |
| Compliance | RoHS Compliant |
Applications
Ideal for:
Digital displays/indicators: Long numeric readouts.
Temperature/humidity monitors: Displaying precise, multi-digit environmental data.
Set-top boxes: Channel frequencies, signal strength, or timer values.
Home appliances: Extended timers or large-volume indicators.
Instrument panels: Industrial metrics or medical device readings.
Product Parameters
Absolute Maximum Ratings(Ta=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+85 | ºC |
| Storage Temperature Range | Tstg | -40~+85 | ºC |
| Solder Temperature(≤3 seconds) | Th | 260 | ºC |
Code:Yellow Green- J
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Code:Pure Green -G
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
