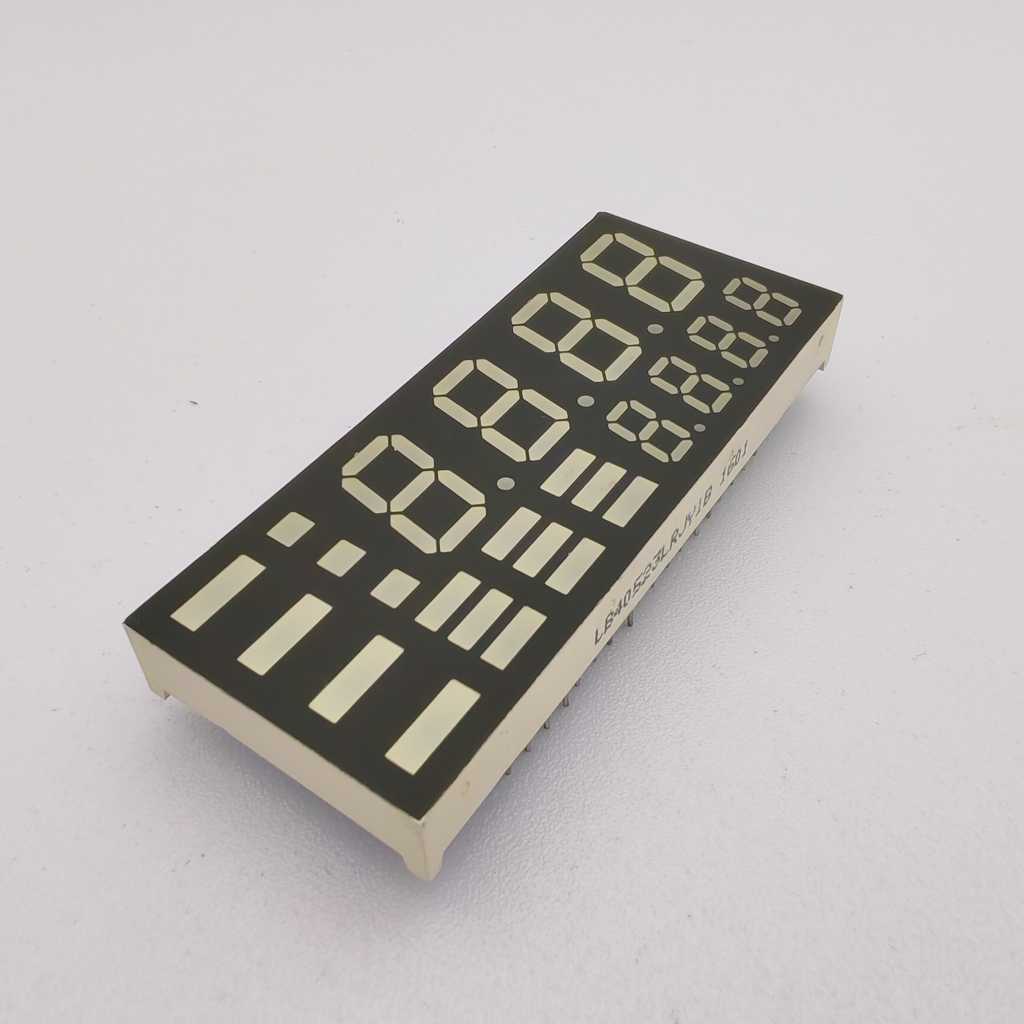

Customized 4-Digit 7-Segment LED Displays for Digital Ovens
Product Feature
High-contrast display with white segments on a black surface
High luminous intensity for excellent visibility
Designed for low power consumption and stable performance
Features continuous, uniform segments for a consistent look
Simple integration with easy PCB mounting and IC compatibility
Fully compliant with RoHS environmental standards

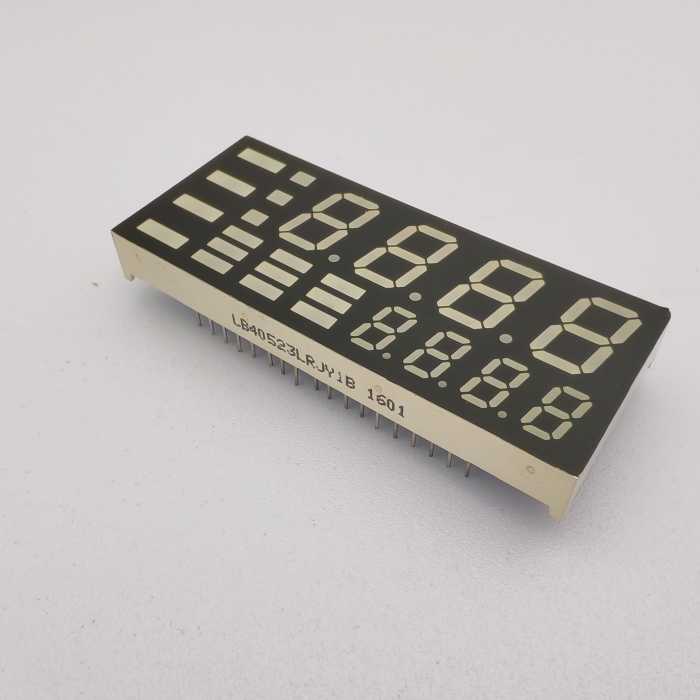

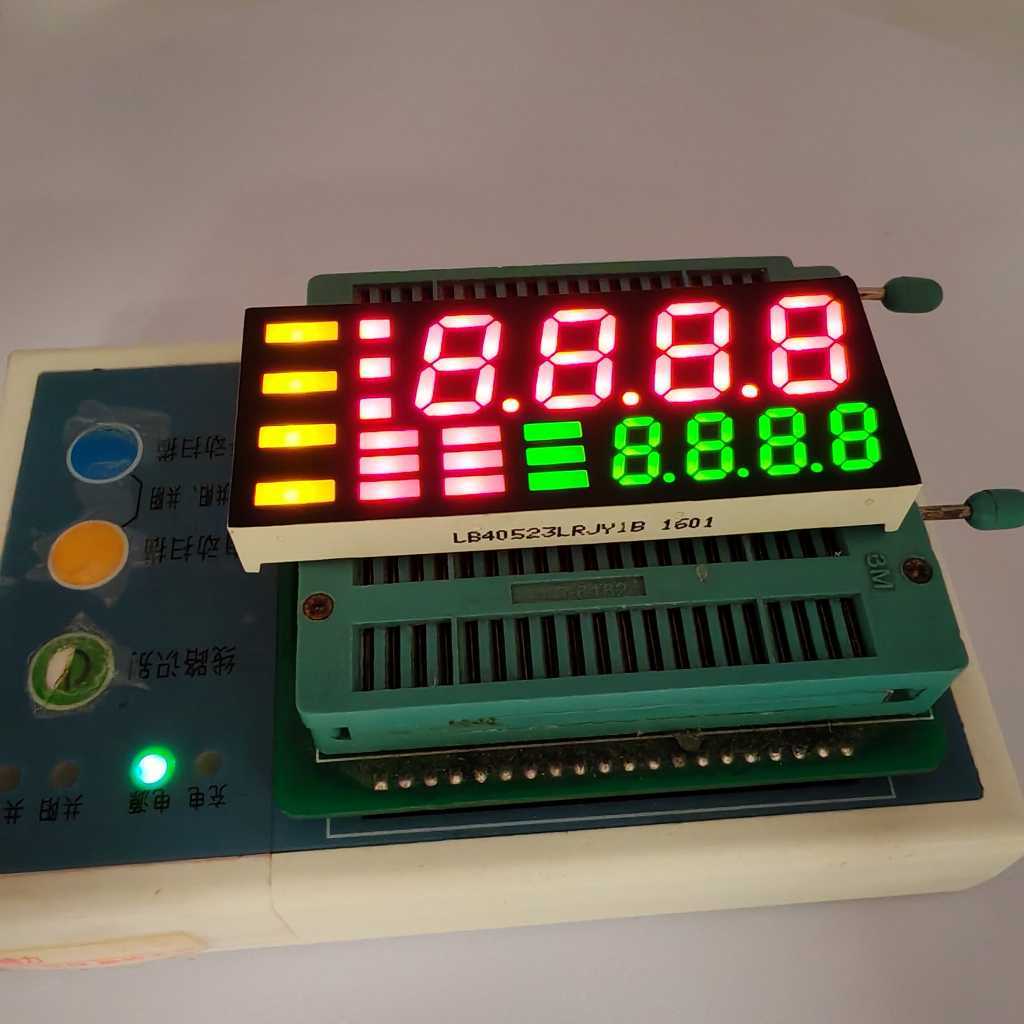

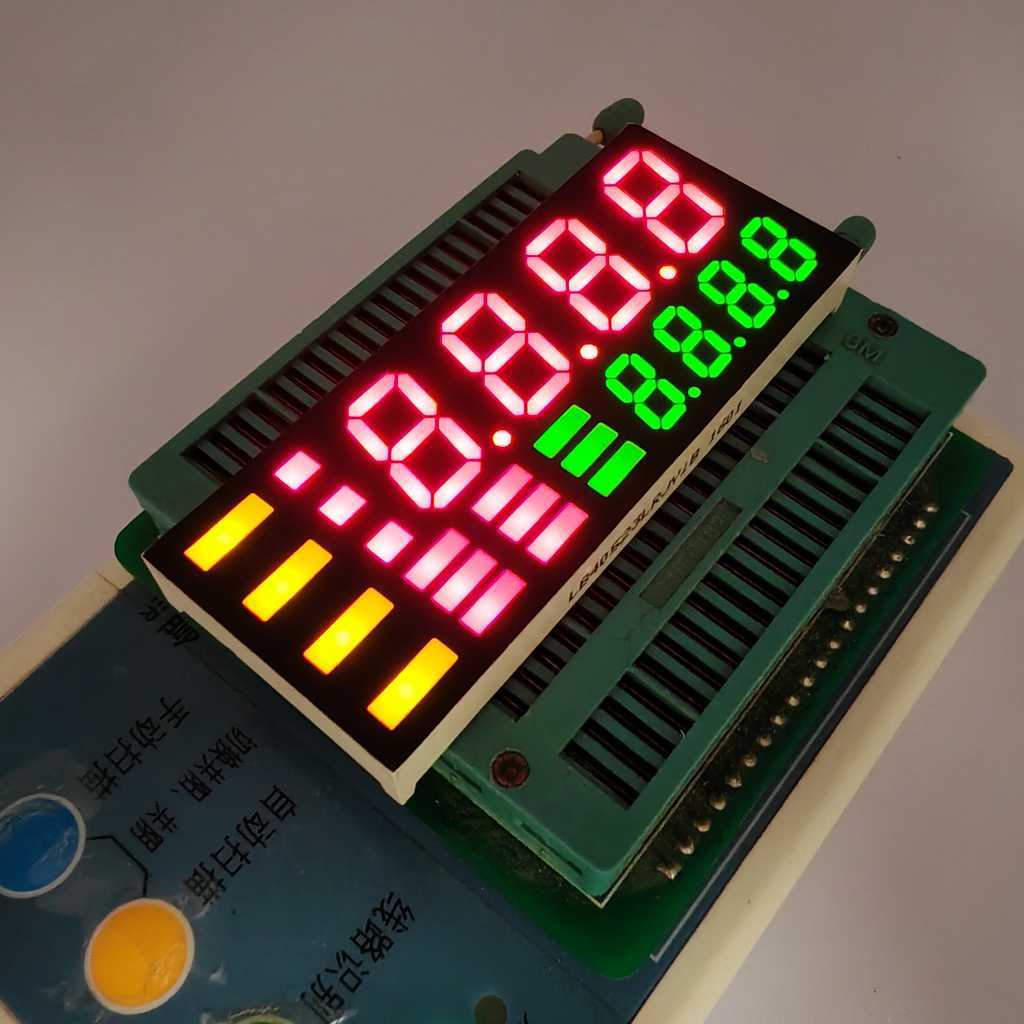

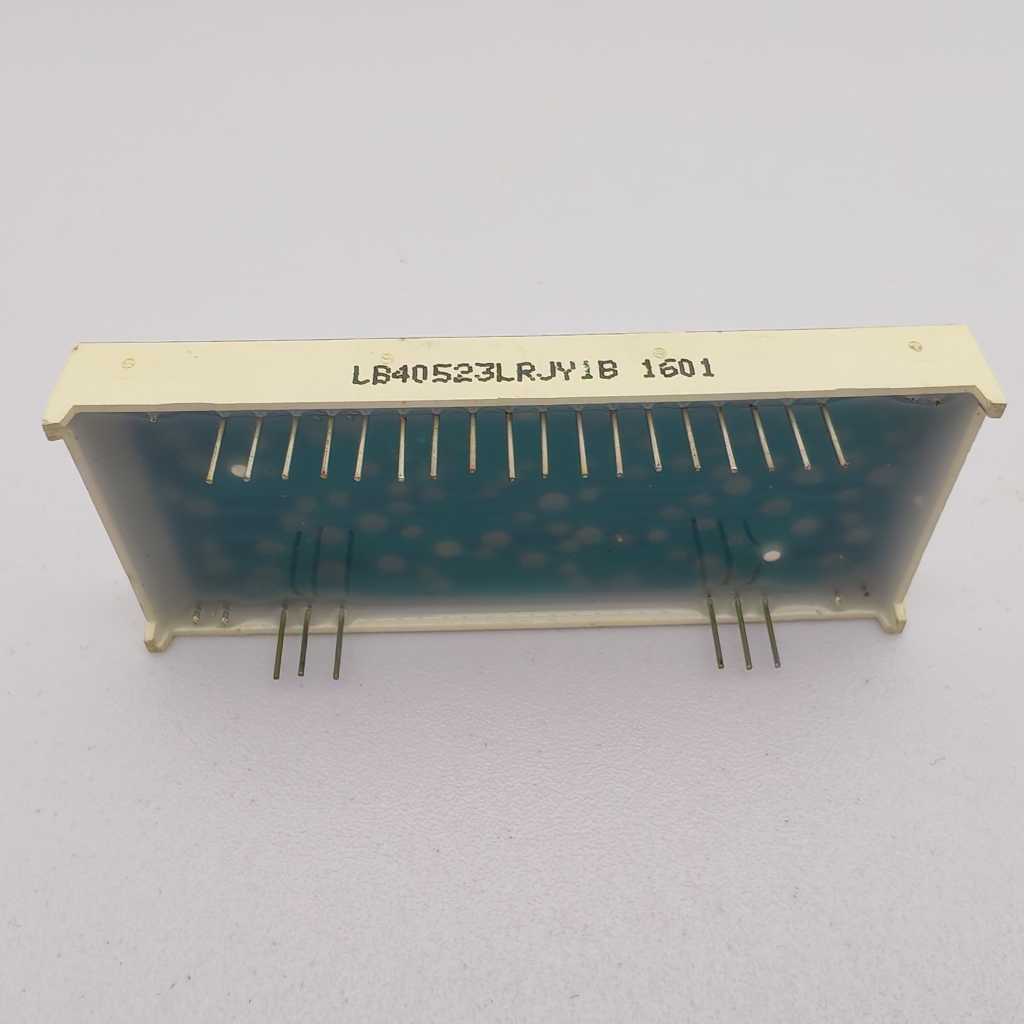

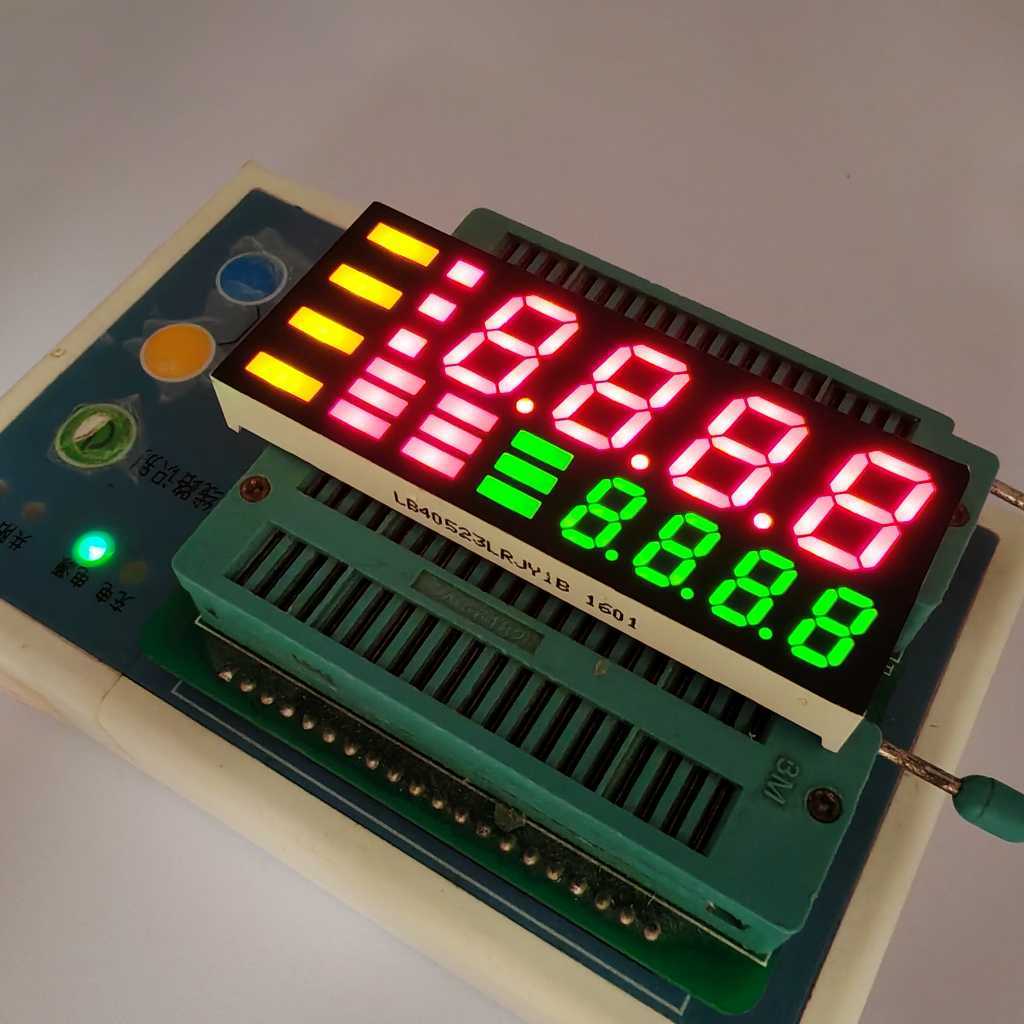

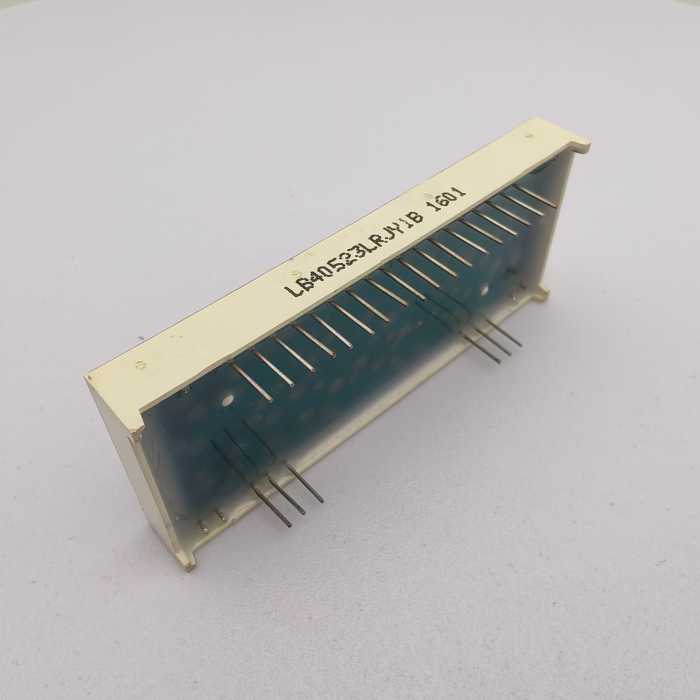

Detailed Photos
Code:Yellow Green- J/JU
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 569 | 574 | nm |
Code:Amber/Yellow -Y
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.5 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 60 | 80 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Code:Ultra Bright Red -UR
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 80 | 100 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 625 | 635 | nm |
Color:Pure Green
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 2.6 | 3.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 120 | 180 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 515 | 525 | nm |
Code:Ultra Bright Blue -BH
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
Wavelength | Dλ | If=10mA | 460 | 465 | nm |
Code:Ultra Bright White -WH
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage | Vf | If=10mA | 2.8 | 3.2 | V | |
Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Absolute Maximum Ratings(Ta=25ºC)
Parameter | Symbol | Ratings | Unit |
Forward Current(per dice) | Ipm | 20 | mA |
Reverse Voltage(per dice) | Vr | 5 | V |
Power Dissipation(per dice) | Pm | 80 | mW |
Operating Temperature Range | Topr | -40~+85 | ºC |
Storage Temperature Range | Tstg | -40~+85 | ºC |
Solder Temperature(≤3 seconds) | Th | 260 | ºC |
