| Min. Order: | 1000 Piece/Pieces |
|---|---|
| Trade Term: | FOB,EXW |
| Payment Terms: | T/T, WU |
| Place of Origin: | Guangdong, China (Mainland) |
| Means of Transport: | Ocean, Air, Land |
| Production Capacity: | 20,000 pcs /day |
| Packing: | EPE+Carton |
| Delivery Date: | 10 - 15 days |
| Type: | 14 segment | Brand Name: | Light-Bo |
|---|---|---|---|
| Digit Height: | 13.8MM | Interface Type: | Common cathode |
| Storage Temperature: | -40 to 85 degrees celsius | Feature: | fast heat-dissipation,Low power |
| Polarity: | Common Cathode |
Common Cathode Alphanumeric LED Display 2 Digit 13.8mm 14 Segment
Key Specifications/Special Features:
14-Segment 0.54-Inch 2-Digit LED Alphanumeric Display
Character Height: 0.54 inch (13.8mm)
Outer Dimensions: 25.2 × 21.1 × 7.8 mm
Design: White segments on a black surface
Configuration: Common cathode
Emission Color: Pure Green (515–525nm)
Luminous Intensity: 120–160 mcd
Forward Voltage: 2.5–3.0 V per LED
Forward Current: 5–10 mA per LED
Available Colors: Red, yellow-green, pure green, blue, white, amber, orange
Code:Ultra Bright White -WH
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 2.6 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 120 | 140 | mcd | |
| LED color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | 0.30,0.33 | nm |
Color:Pure Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.5 | 3.0 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 120 | 160 | mcd | |
| Spectrum With Of Half Value | λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 515 | 525 | nm |
Code:Yellow Green- J/JU
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 30 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 569 | 573 | nm |
Code:Amber/Yellow -Y
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 585 | 595 | nm |
Code:Orange -F
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.4 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 600 | 605 | nm |
Code:Super Bright Red -R
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=10mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=10mA | 50 | 60 | mcd | |
| Spectrum With Of Half Value | △λ | If=10mA | 20 | nm | ||
| Wavelength | Dλ | If=10mA | 630 | 635 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40~+120 | ℃ |
| Storage Temperature Range | Tstg | -40~+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Key Features:
High-Performance Display: Uniform segment brightness with optimal energy efficiency
Ultra-Low Power Operation: Minimal energy consumption for extended use
Standardized Dimensions: Industry-compliant sizing for easy integration
Long-Term Reliability: Outstanding stability & prolonged service life
Effortless Installation: Streamlined assembly for rapid deployment
Enhanced Visibility: Excellent readability even in bright environments
Eco-Friendly Compliance: Meets RoHS environmental standards
Wide Temperature Range: Reliable operation from -35°C to +85°C
Applications:
Audio equipment or instrument panels
General use for digital indicators
Multimedia products
7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
Certifications

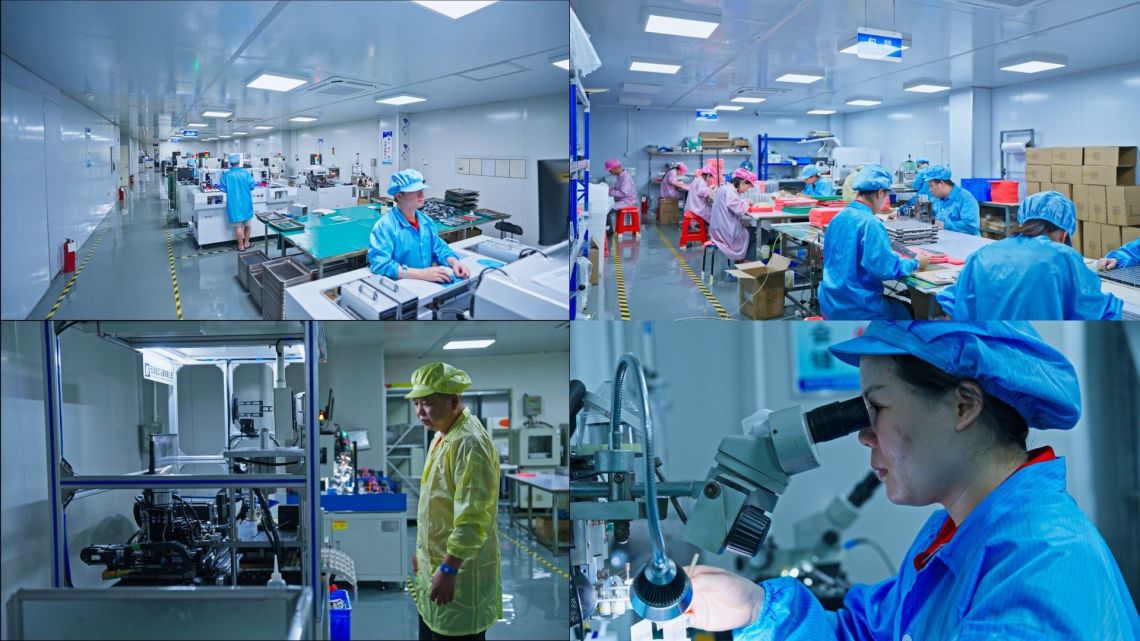

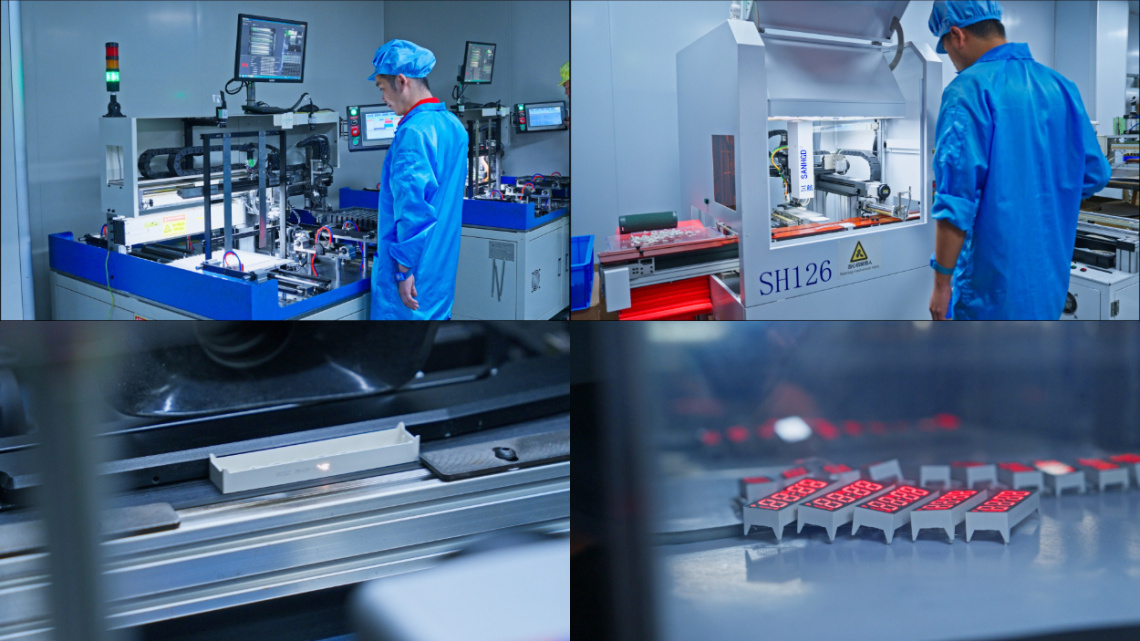

Office and Factory Overview:
