Common Anode Single Digit 0.39-inch 7 Segment Ultra Bright Red LED Display For Instrument Panel

Common Anode Single Digit 0.39-inch 7 Segment Ultra bright Red LED Display for Instrument Panel

Product Descriptions:
Package dimension:10*13*7mm
Character height:9.9mm( 0.39 inch)
Polarity:Common anode
Colour:Super bright red
Face Colour:Black/Grey
Wavelength:630-635nm
Luminous intensity:50-60mcd/dice
Forward voltage:1.8-2.2V/led
Emitting colors: red, blue, yellow green, pure green,white, amber, orange, and yellow

• Product Features:

• High luminous intensity and reliability

• Big viewing angle

• Stable performance

• Long lifetime

• Easy assembly

• IC Compatible

• RoHS directive-compliant

• Applications:

• Widely used for audio equipments or instrument panels, digital indicators and numeric displays ,digital clock indicators,digital counters, digital read-out display panels and so on .

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm

  Code:Amber/Yellow -Y

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm

  Code:Orange -F

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm

  Code:Super Bright Red -R

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm

  Code:Ultra Bright Red -UR

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm

  Code:Pure Green -G

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm

  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

•


SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Founded in 2006, this ISO 9001:2015 certified powerhouse specializes in the R&D, manufacturing, and sales of cutting-edge optoelectronics LED Displays. With over 15 years of OEM and ODM expertise, we stand as a leader in quality and innovation.

LIGHTBO is dedicated to delivering top-tier, cost-efficient customized solutions that empower customers to reduce expenses while boosting their competitive edge.

Products Applications

Our versatile range includes 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot matrix LED Displays. Widely implemented in home appliances, these displays are perfect for temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, and heating and cooling control systems, among others.

Certifications

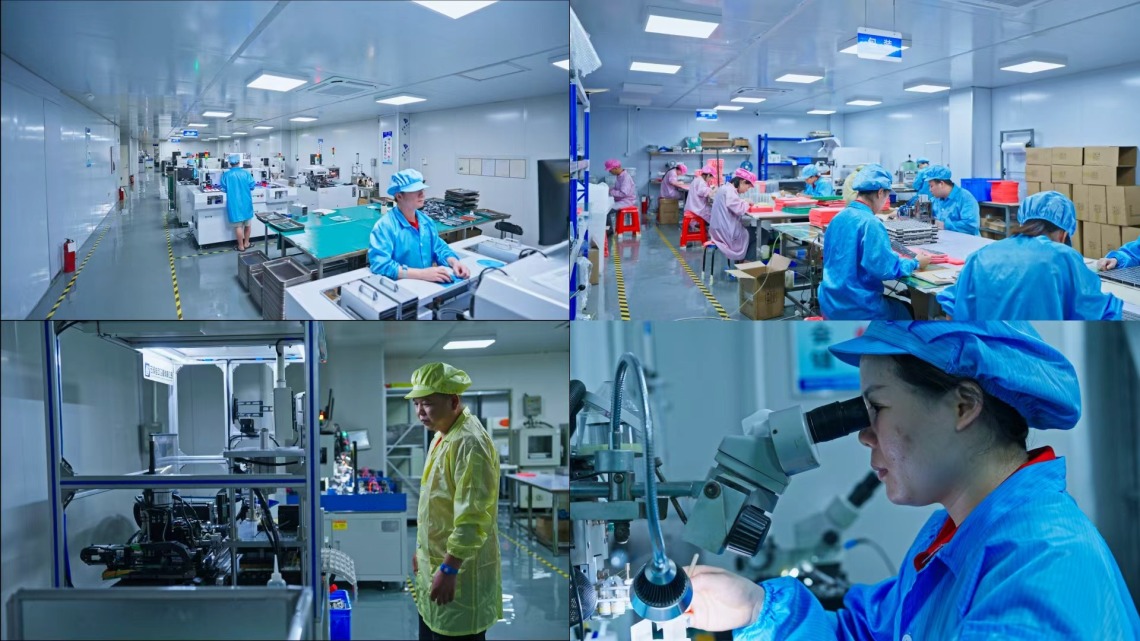

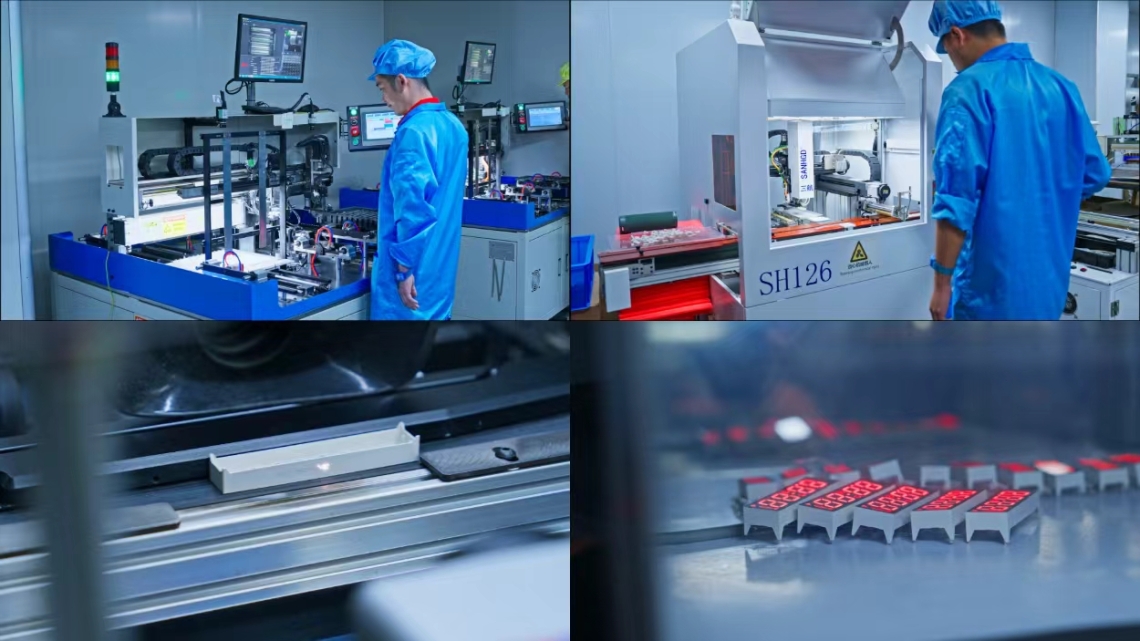

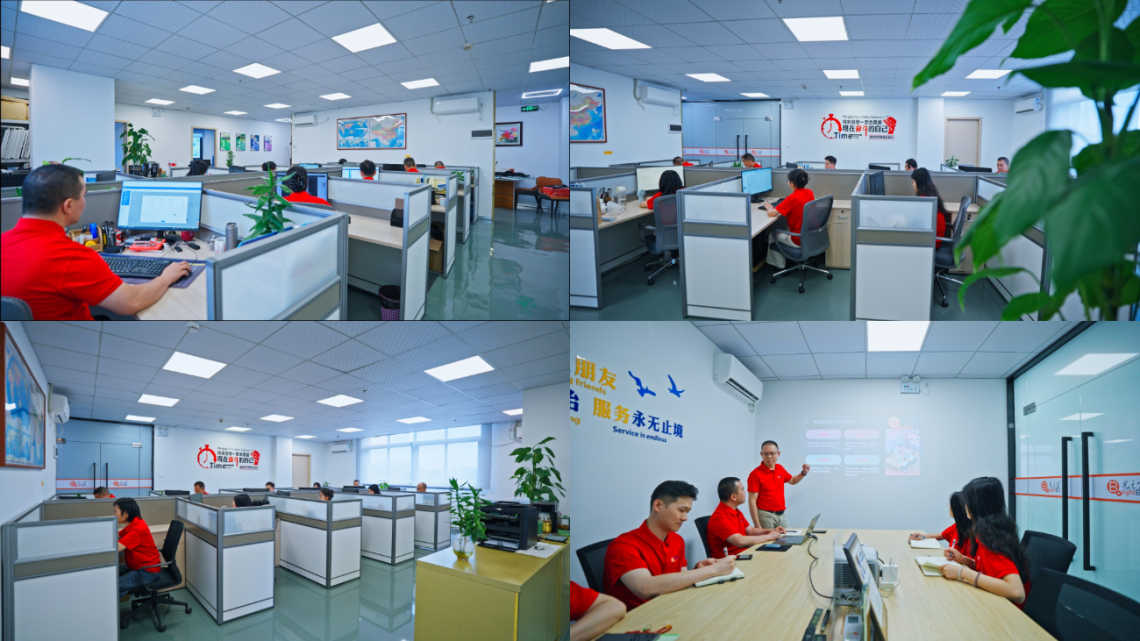

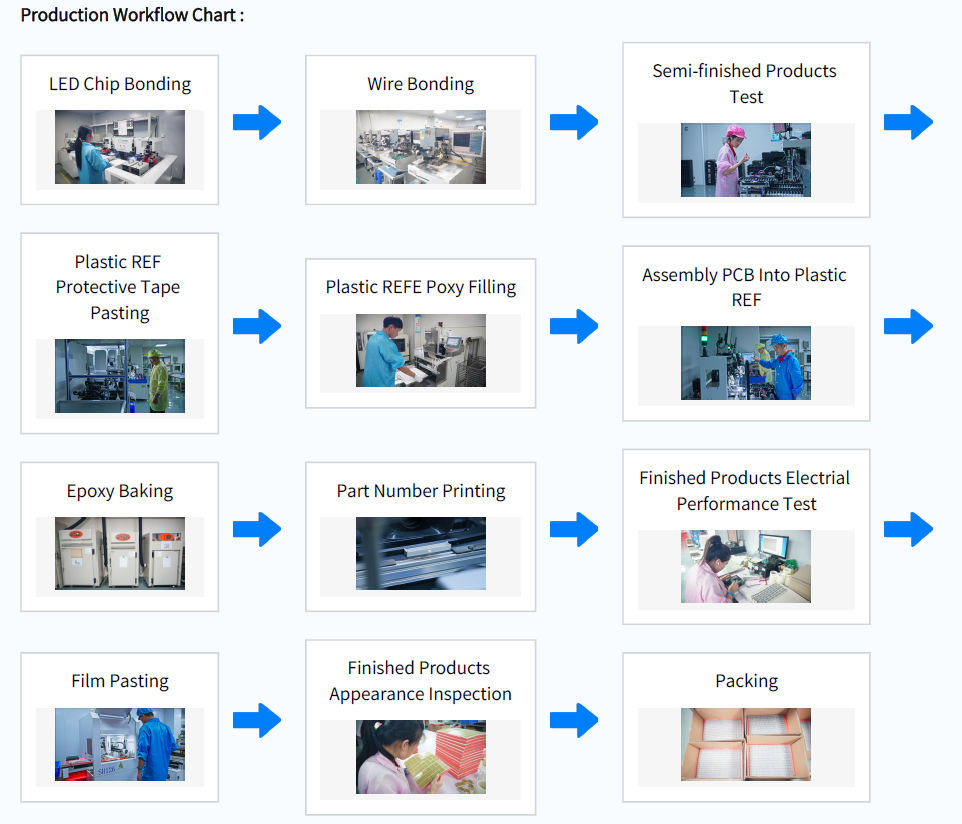

Office and Factory Overview
