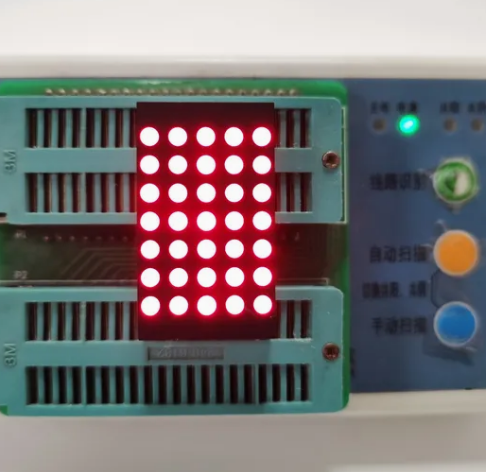

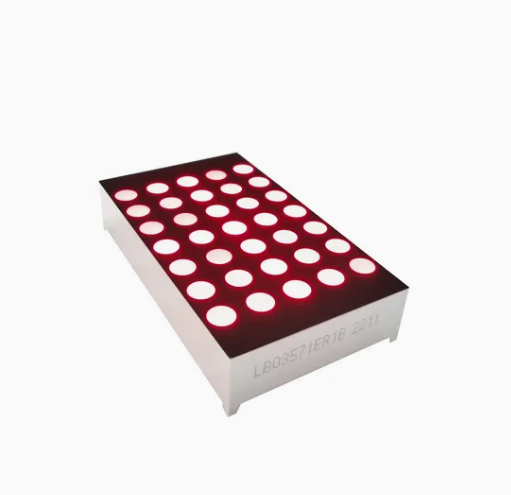

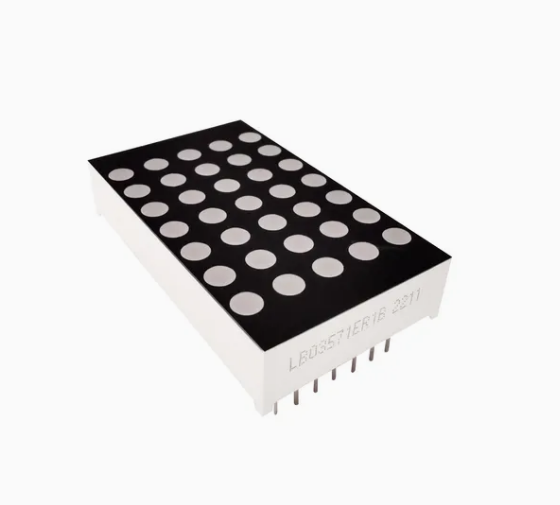

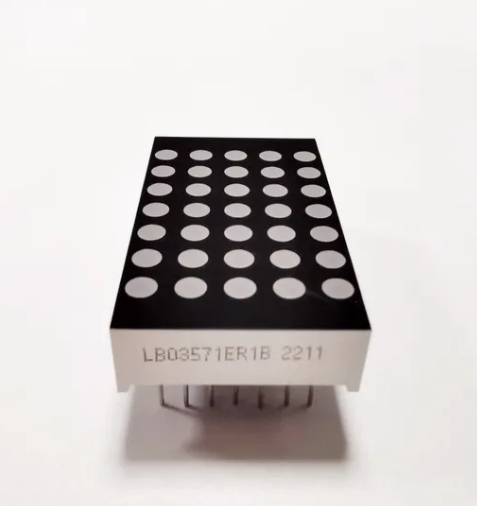

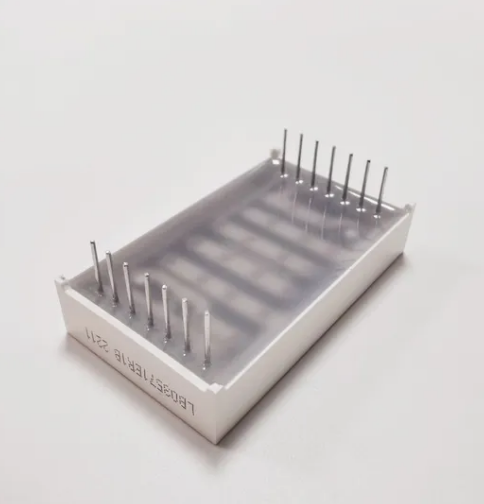

Ultra Red 5 x 7 LED Dot Matrix LED Display 3mm for Elevator position indicator
Ultra Red 5x7 Dot Matrix Display
3mm 2 Digit Red LED Matrix
Red 5x7 Elevator Indicator
5x7 Ultra Red LED Display
3mm Red Matrix Elevator Display
Production Capacity: 20,000 pcs /day
Packing: EPE+CARTON
Delivery Date: 5 - 7 days
Type: Standard
Brand Name: Light-Bo
Emitting dot diameter:: 3mm
Outer dimensions: 23 x 39.1 x 8 mm
Connection: Row cathode Column Anode
Emitting colors: Ultra bright red
1.54" RED 3mm 5 x 7 dot-matrix LED display
Package Dimensions: 23 x 39.1 x 8 mm
Key Specifications/Special Features:
| Package Dimensions | 23 x 39.1 x 8 mm |
| Face Color | Yellow Segments Black Face |
| Connection | Row cathode Column anode |
| Colour | ultra red |
| Wavelength | 625-635nm |
| IV | 80-100mcd/dot |
| Forward Voltage(VF) | 1.8-2.5V |
| Forward Current | 20mA |
| Reverse Voltage | 5V |
High luminous intensity low power consumption
Big viewing angle
Stable performance
Continous uniform dots
Long lifetime
Easy assembly
IC compatible
RoHS directive-compliant
Appliction:
Widely used for home appliances, lift position indicators, digital displays, elevator floor indicators, display screen and so on .
