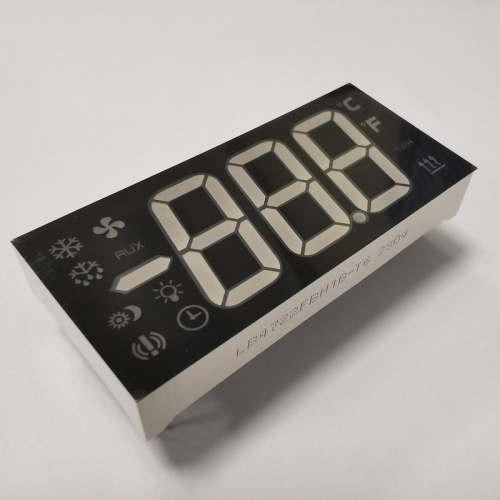

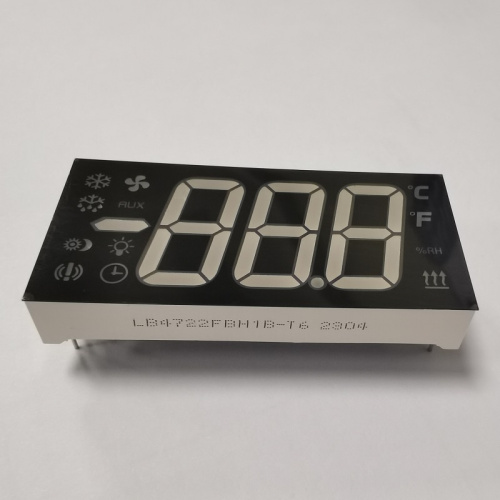

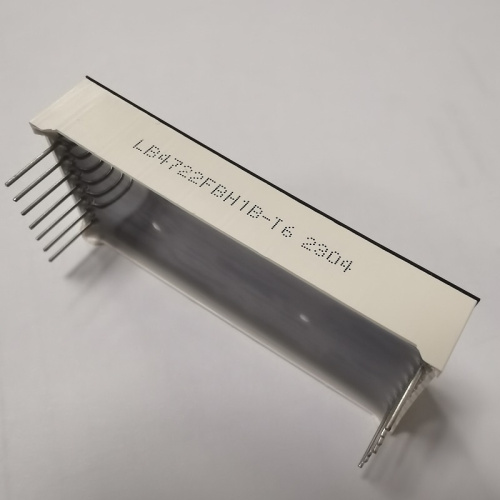

17mm 3 Digit 7 Segment LED Display Ultra Bright Blue Common Anode For Refrigerator Controller

Product Description

Ultra bright blue Triple Digit 7 Segment LED Display common anode for Refrigerator Controller

• Character height: 17mm (0.67inch)

• Outer dimensions: 47 x 22 x 8 mm

• Polarity: common anode

• Emitting colour: Ultra bright blue

• Wavelength:460-465

• Luminous intensity : 80-100mcd

  Forward voltage: 2.8-3.3V/led

• Forward current: 5-10mA/led

• Emitting Colors: available in red, blue, green, white, amber, yellow and orange,Multi-colour

Application of Segment LED Displays

Widely used for lift position indicators, elevator floor indicators and display screens,moving signs,message boards,home appliances and so on

Color:Pure Green

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=20mA	2.5		3.0	V
  Reverse Voltage	Vr	Ir=10uA		5		V
  Luminous Intensty	Iv	If=20mA	120		160	mcd
  Spectrum With Of Half Value	λ	If=20mA		20		nm
  Wavelength	Dλ	If=20mA	515		525	nm

• Code:Yellow Green- J/JU

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		573	nm

• Code:Amber/Yellow -Y

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm

• Code:Orange -F

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm

• Code:Super Bright Red -R

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm

• Code:Ultra Bright Red -UR

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	90		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	620		625	nm

• Code:Ultra Bright Blue -BH

• Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.0	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	100		120	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		470	nm

Code:Ultra Bright White -WH

• Absolute Maximum Ratings(Ta=25℃)

• Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+120	℃
  Storage Temperature Range	Tstg	-40~+120	℃
  Solder Temperature(3 sec)	Th	260	℃

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO)stablished in 2006 , A company that integrates R & D, manufacturing and sales of optoelectronics LED Displays . ISO 9001 2015 Quality Management Systems certified company .  With more than 15 years OEM and ODM experience .

LIGHTBO has been committed to provide high quality and low cost customized solutions to help customers reduce cost and enhance competitiveness.

Products Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot matrix LED Display, widely used for home appliances,tempearture indicators, humidity indicators, refrigerator controller,thernostats indicator,heating and cooling control and so on.
