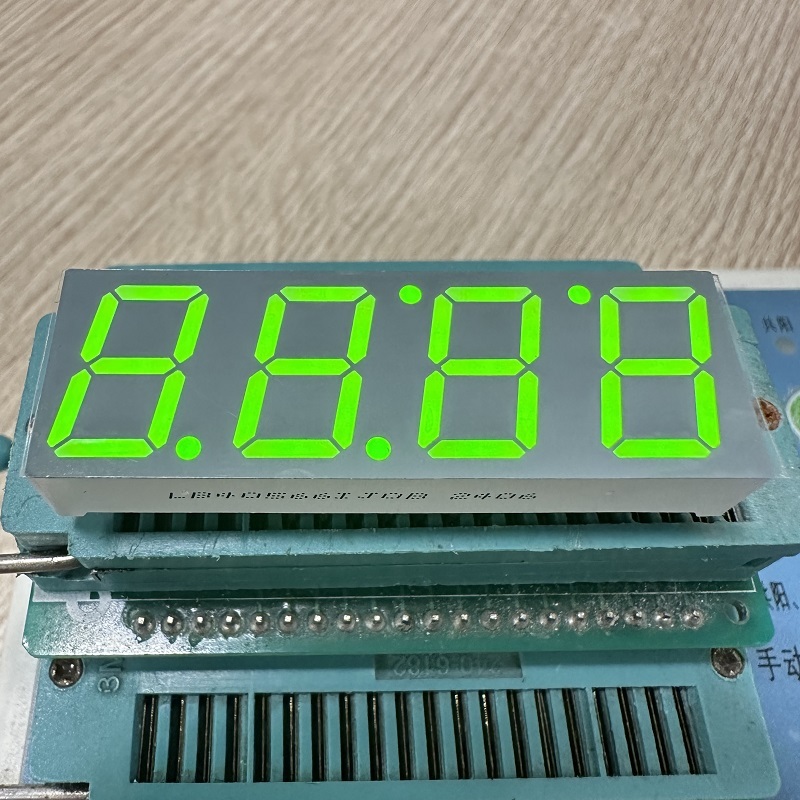

7 SEGMENT LED CLOCK DISPLAY 4 DIGIT 14.2MM (0.56") 50.4 x 17.1 x 8 mm

Key Specifications/Special Features:

• 4 digit 0.56 inches 7 segment led displays

• Character height: 0.56 inches (14.2mm)

• Outer dimensions: 50.4 x 17.1 x 8mm

• White segment Grey Face

• Polaity : Common Anode

• 12PINS, UP 5 PINS + DOWN 7 PINS


• Super Bright Green

• Wavelength : 570-573nm

• Luminous intensity :40-50 mcd

• Forward voltage: 1.8-2.25V


• Ultra Bright Blue

• Wavelength:462-465nm

• Luminous intensity:80-100 mcd

• Forward voltage:3.1-3.6V

•


• Pure Green

• Wavelength: 512-515nm

• Luminous Intensity: 120-150 mcd

• Forward voltage: 3.1-3.6V



• Emitting colors: available in red, blue, yellow green, pure green, pure white, amber, and orange

• High luminous intensity

• Low power consumption

• Stable performance

• Continuous Uniform Segments

• Long lifetime

• Big viewing angle

• Easy assembly

• IC Compatible

• RoHS directive- compliant

• Widely used for set-up boxes,clock indicators,clock display, home appliances, temperature indicators, instrument panels and so on .
